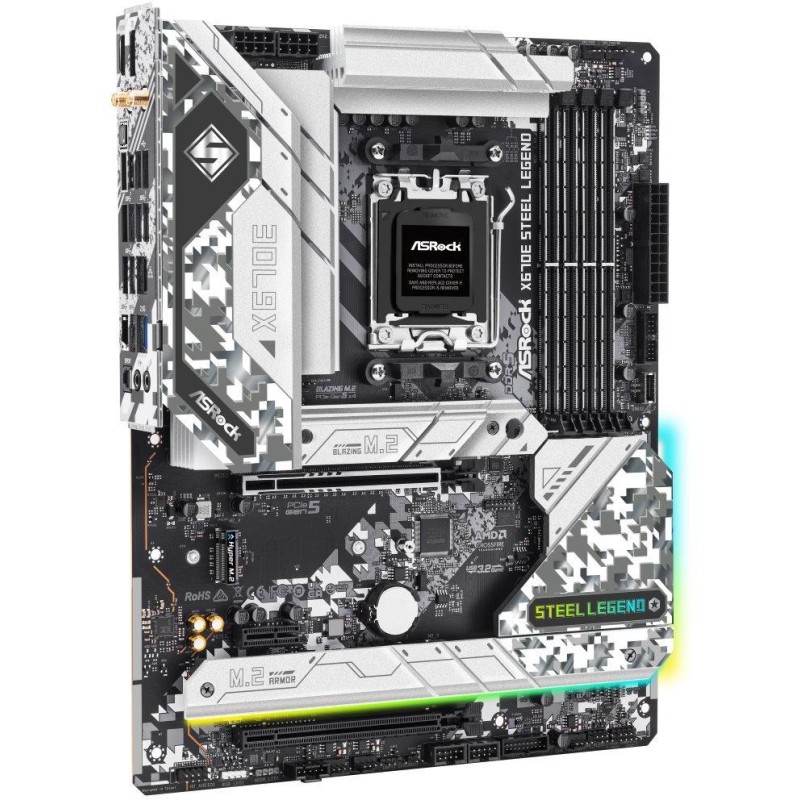

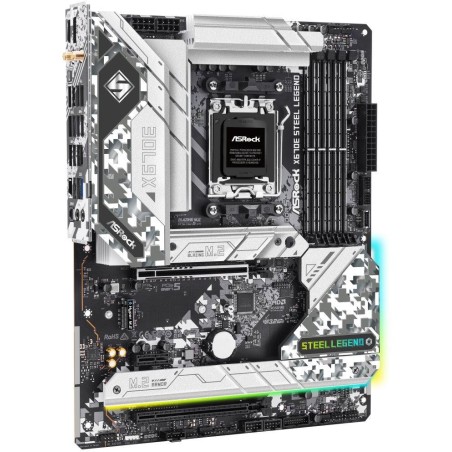

ASRock X670E Steel Legend
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 7000 series processors (Socket AM5)
Chipset
AMD X670
Memory
4× DDR5 memory slots, support up to 192 GB
Supports DDR5 up to 6600+ (OC) MHz
Dual-channel memory architecture
ECC/non-ECC support, unbuffered
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
1× PCIe 5.0 x16 slot
1× PCIe 3.0 x16 slot (supports x4 mode)
AMD X670 chipset
1× PCIe 3.0 x1 slot
Graphic arts
1× DisplayPort port, supporting max. resolution 4K at 120 Hz
1× HDMI port, supporting max. resolution 4K at 120 Hz
Multi-GPU
AMD CrossFire technology support
Storage
1× Blazing M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)
1× Hyper M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280 type units (PCIe 4.0 x4 mode)
1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
4× SATA 6Gb/s ports
ASRock U.2 Kit Support
RAID 0, RAID 1 and RAID 10 support for SATA drives
RAID 0, RAID 1 and RAID 10 support for PCIe drives
USB
2× USB-C 3.2 Gen2×2 port (1 port on the back panel, 1 port available via internal USB connector)
1× USB 3.2 Gen2 port on the back panel
10× USB 3.2 Gen1 (USB 3.0) ports (6 ports on the back panel, 4 ports available via internal USB connectors)
8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)
Audio
Realtek ALC1220 Codec
7.1 channel High Definition Audio
Nahimic audio
HIND
1× Dragon RTL8125BG 2.5Gigabit LAN controller
1× Realtek RTL8111 Gigabit LAN controller
WLAN/Bluetooth
Wi-Fi 6E 802.11a/b/g/n/ac/ax
Dual Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO support
Bluetooth
Internal connectors
1× SPI TPM connector
1× speaker connector and Power LED
1× RGB LED strip connector
3× addressable LED strip connector
1× 4pin CPU fan connector
1× 4pin CPU fan/water cooling fan connector
4× 4pin chassis fan/water cooling fan connector
1× 24pin ATX main power connector
2× 8pin 12V power connector
1× front panel audio connector
1× 5pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC Card)
2x USB 2.0 connector (supports 4x USB 2.0 port)
2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen2×2 front panel connector
Rear panel ports
2× Wi-Fi antenna connector
1× HDMI
1× DisplayPort
1× optical S/PDIF output
1× USB-C 3.2 Gen2×2
1× USB 3.2 Gen2 (USB 3.1 Gen2)
6× USB 3.2 Gen1 (USB 3.0)
4× USB 2.0 />
2× RJ-45
1× BIOS Flashback button
2× audio jacks
Dimensions
30.5 × 24.4 cm
ATX format
