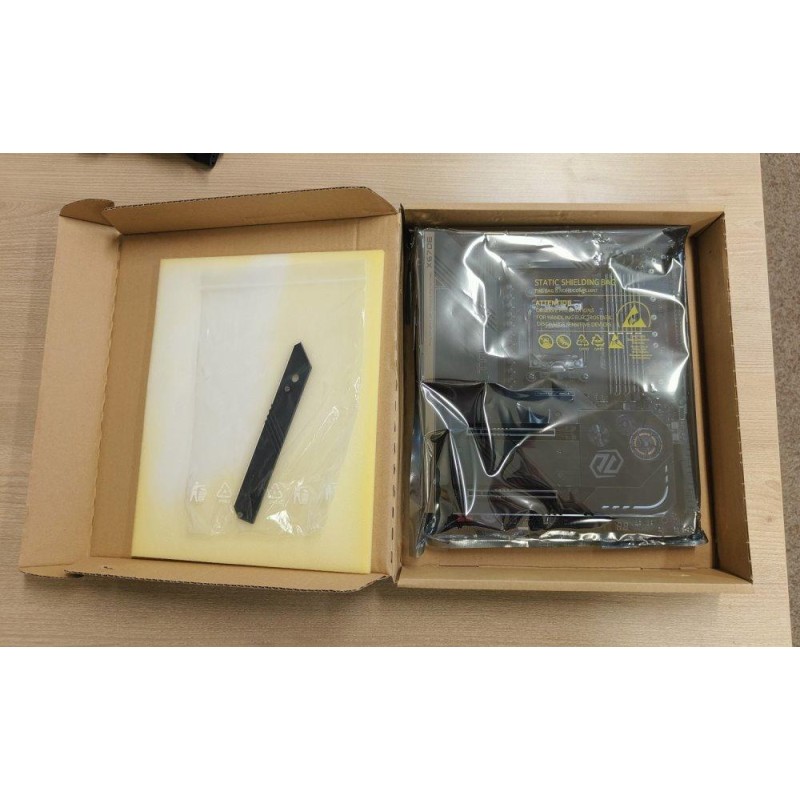

ASRock X670E Taichi
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 7000 series processors (Socket AM5)
Chipset
AMD X670
Memory
4× DDR5 memory slots, support up to 192 GB
Supports DDR5 up to 6600+ (OC) MHz
Dual-channel memory architecture
ECC/non-ECC support, unbuffered
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
2× PCIe 5.0 x16 slot (supports x16 or x8/x8 mode)
Graphic arts
1× HDMI port, supporting max. resolution 4K at 120 Hz
2× USB4 (USB-C) ports, supporting max. resolution 8K at 60 Hz
Multi-GPU
AMD CrossFire technology support
Storage
1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280/22110 type units (SATA and PCIe 4.0 x4 mode)
2× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
8× SATA 6Gb/s ports
ASRock U.2 Kit Support
RAID 0, RAID 1 and RAID 10 support for SATA drives
RAID 0, RAID 1 and RAID 10 support for PCIe drives
USB
2× USB4 (USB-C) ports on the back panel
1× USB-C 3.2 Gen2x2 port available via internal USB connector
5× USB 3.2 Gen2 (USB 3.1) ports on the back panel
7× USB 3.2 Gen1 (USB 3.0) ports (3 ports on the back panel, 4 ports available via internal USB connectors)
4× USB 2.0 ports available via internal USB connectors
Audio
Realtek ALC4082 Codec
5.1-channel High Definition Audio
ESS SABRE9218 DAC for front panel
Nahimic audio
HIND
1× Killer E3100G 2.5Gigabit LAN controller
Killer DoubleShot Pro support
WLAN/Bluetooth
Killer Wi-Fi 6E
Wi-Fi 802.11a/b/g/n/ac/ax
Dual-Band 2x2 160 MHz (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO support
Killer DoubleShot Pro support
Bluetooth 5.3
Internal connectors
1× speaker connector and Power LED
1× RGB LED strip connector
3× addressable LED strip connector
1× 4pin CPU fan connector
1× 4pin CPU/water cooling fan connector
6× 4pin chassis/water cooling fan connector
1× 24pin ATX main power connector
2× 8pin 12V power connector
1× front panel audio connector
2x USB 2.0 connector (supports 4x USB 2.0 port)
2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen2x2 front panel connector
1× Dr. Debug with LED
1× Power button with LED
1× Reset button with LED
Rear panel ports
2× Wi-Fi antenna connector
1× HDMI
1× optical S/PDIF output
2× USB4 (USB-C)
5× USB 3.2 Gen2 (USB 3.1)
3× USB 3.2 Gen1 (USB 3.0)
1× RJ-45
1× Clear CMOS button
1× BIOS Flashback button
2× audio jacks
Dimensions
30.5 × 26.7cm
E-ATX format
