PLANET IECC-210-KIT

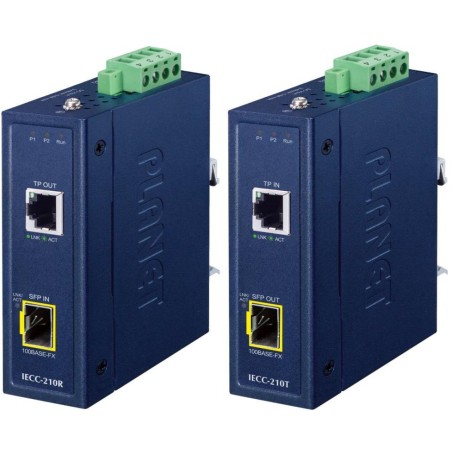

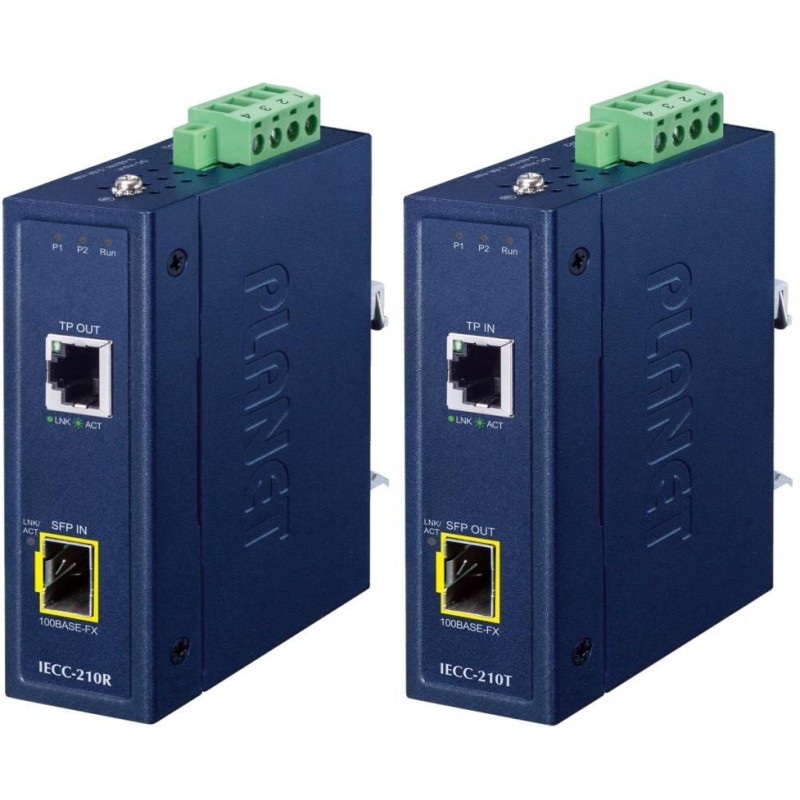

The IECC-210T and IECC-210R industrial converters set allows you to extend the communication distance within the EtherCAT network up to 60 km. The IECC-210T serves as a converter from metallic lines to optical fiber, while the IECC-210R converts the signal from optical fiber to metallic lines. Communication over the IP protocol in conjunction with the EtherCAT protocol is used in automation and real-time control of devices. Dual power input increases the reliability and operability of the entire system.
Industrial Ethernet devices are designed for demanding operating conditions with a wide range of operating temperatures, uncertain power supply and frequent shocks, enabling the deployment of well-known Ethernet technology in industrial environments. It is also suitable for installation in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications). Installation on the wall (mounting part included) or on a DIN rail.
BASIC SPECIFICATIONS
Set contents:
- 1× IECC-210T transmitter (TX)
- 1× IECC-210R receiver (RX)
- 2x wall mounting kit
- 2× SFP slot blanking plate
- 2× RJ-45 port blanking plug
Network features:
- 1× 100BASE-TX RJ-45 interface
- 1× 100BASE-FX SFP interface
- LED input status indication
- 9-48V DC input voltage
- EtherCAT Distributed Clock (DC) mode
- Verified by EtherCAT test tool
Physical properties:
Ports: 1x RJ-45 100BASE-TX, 1x 100BASE-FX SFP
EtherCAT support: yes
Protection: IP30, metal housing
Power supply: dual (2× 2pin), 9–48 V DC external power supply (not included), power consumption max. 1.92 W
Operating temperature: –40°C to +75°C, humidity 5–95%
Dimensions: 104 × 70 × 33 mm
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50 g, long-term acceleration of 4 g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Voltage dips, short interruptions and slow voltage changes
