FIXED - Planet GT-1205A converter 1x 10/100/1000Base-T / 2x SFP

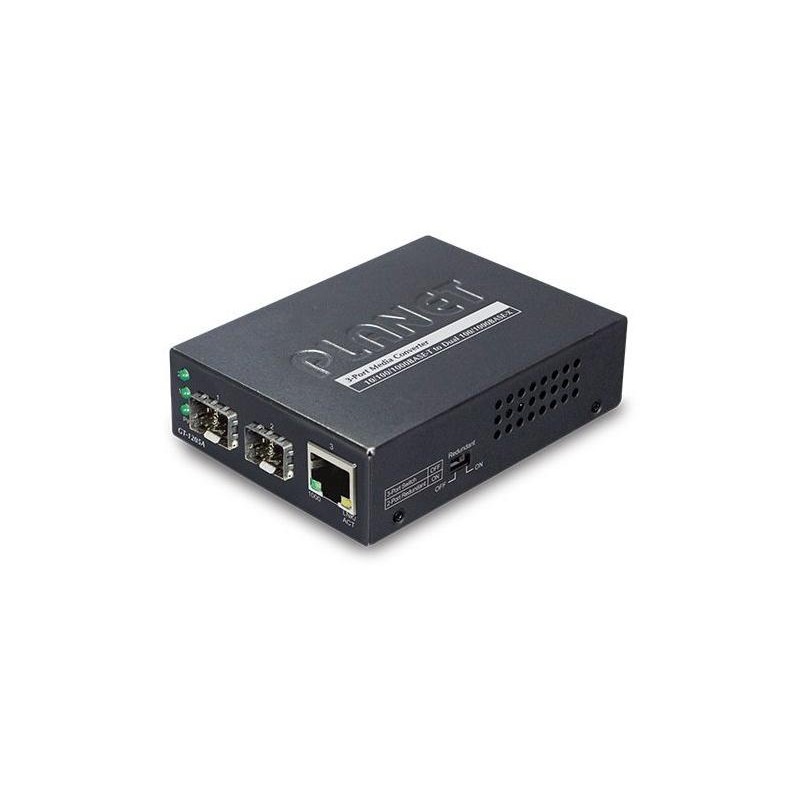

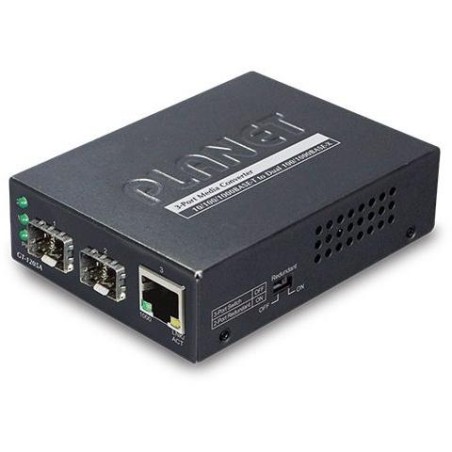

PLANET GT-1205A

Compact converter for Gigabit Ethernet networks for easy transition between metallic and optical lines. It offers two 100/1000Base-X SFP ports for connection to an optical network or for connecting end devices and one 10/100/1000Base-T (RJ-45) port for connection to a metallic network. The converter can be installed in the MC-700, MC-1500, MC-1500R chassis.

The GT-1205A can be configured to support 100BASE-FX or 1000BASE-X SFP modules via a built-in DIP switch on the rear panel. Using PLANET MFB/MGB series SFP modules, the GT-1205A can be connected to optical lines up to 2 km using multimode fiber or up to 120 km using singlemode or WDM fiber.

Through the built-in DIP switch on the side, the GT-1205A can be configured as a 3-port Ethernet switch or a 2-port redundant media converter. In switch mode, the GT-1205A can operate with high performance thanks to the Store-and-Forward mechanism. Conversely, in converter mode, it provides redundant connectivity for critical Ethernet applications and supports auto-recovery function. In case of signal failure on the primary port, it will switch to the backup port.

BASIC SPECIFICATIONS

Ports: 1x RJ-45 10/100/1000Base-T, 2x SFP 10/1000Base-X

Throughput: 6 Gbps bus, 4.4 Mpps operational

Transmission support: Frame 10 KB

Power supply: external 5 V DC, total power consumption up to 4 W

Operating temperature: 0°C - 50°C

Dimensions: 94 x 70 x 26 mm

Weight: 180g

Supported SFP modules:

MGB: MGB-LX, MGB-SX, MGB-SX2, MGB-L40, MGB-L120, MGB-L80, MGB-LA10, MGB-LB10, MGB-LA20, MGB-LB20, MGB-LA40, MGB-LB40, MGB-LA80, MGB-LB80, MGB-TSX, MGB-TSX2, MGB-TLX, MGB-TL40, MGB-TL80, MGB-TLA10, MGB-TLB10, MGB-TLB20, MGB-TLB20, MGB-TLA40, MGB-TLB40, MGB-TLB80, MGB-TLB80, MGB-TSA, MGB-TSB

MFB: MFB-FX, MFB-F20, MFB-FA20, MFB-FB20, MFB-F40, MFB-F60, MFB-TFX, MFB-TF20, MFB-TFA20, MFB-TFB20, MFB-TFA40, MFB-TFB40, MFB-TSA, MFB-TSB
