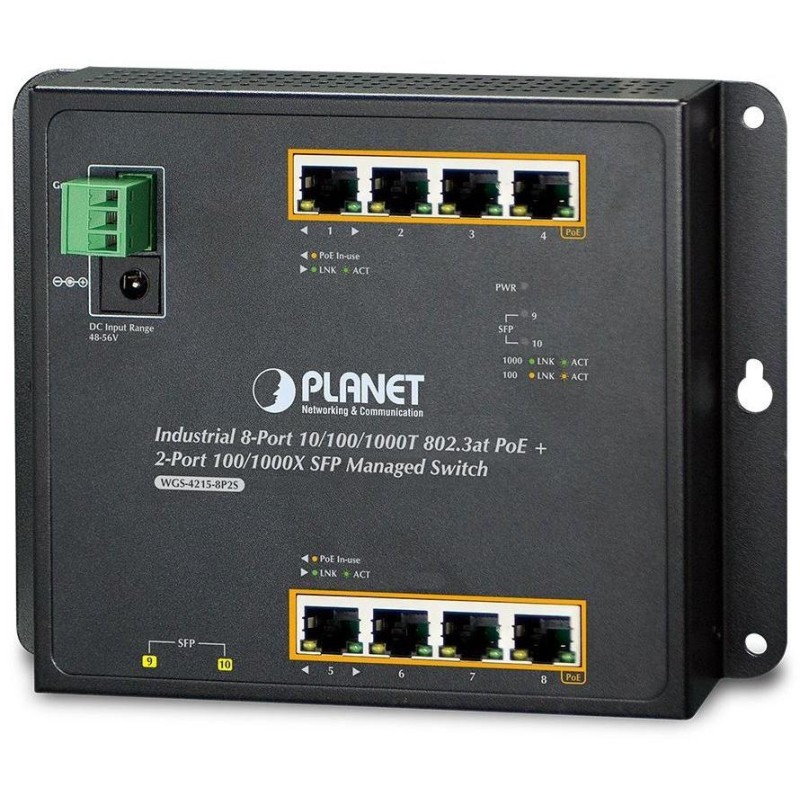

PLANET WGS-4215-8P2S
Managed gigabit switch with 8x 1000Base-T and 2x SFP 100/1000Base-X ports, 8x 802.3at PoE injectors, total power up to 200W.
Web/SNMPv3/telnet management, IPv4/IPv6 support. VLAN 802.1Q, QoS-shaper, static LACP trunk, IGMPv3, Spannig tree. ACL+MAC filter, RADIUS/TACACS, DHCP snooping.
Wall or DIN installation, metal design IP30, drop and vibration resistant. ESD+EFT port protection, external DC 48~56V power supply, operation at -40 to 75°C, fanless.
Gigabit managed 8-port switch with PoE (power over ethernet) ports for centralized power supply of devices over Ethernet such as IP cameras, WiFi elements or VOIP phones. A total of 200W of power is available.
The device is suitable for installation on a wall or directly into elevators, the construction is resistant to falls and vibrations, including IP30 protection.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T + 2 x SFP 1000BASE-X
Memory: 8k MAC addresses, 4.1Mbit buffer
Throughput: 20 Gbps bus, operational 14.8 Mpps (64B)
Transmission support: JumboFrame 10KB
Design: DIN rail for wall mounting
Power supply: 48-56V DC power supply, jack or PIN terminal, total power consumption up to 10W (power supply not included)
Protection: ESD up to 6kV, EFT up to 8kV
Operating temperature: -40 - 75°C
Dimensions: 178 x 134 x 25 mm
Weight: 640g
Administration functions:
Management: Telnet, Web, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags, DSCP
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: traffic prioritization according to 802.1pa according to ToS/DS in IP packets, possibility of setting limits on packets sent per port and according to QoS rules
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN
VLAN Protocol
Voice VLAN
VLAN management
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, many to one
Link aggregation: IEEE 802.3ad LACP, 8 ports in 4 groups
IGMP multicast: IGMP v2/ v3, up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding, 256 rules
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:
Total power output: 200 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8 x up to 30 W
Power supply type: End-span
Advanced features: integrated scheduler for planned shutdown of powered devices end elements
detection of activity of powered devices using ICMP
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
