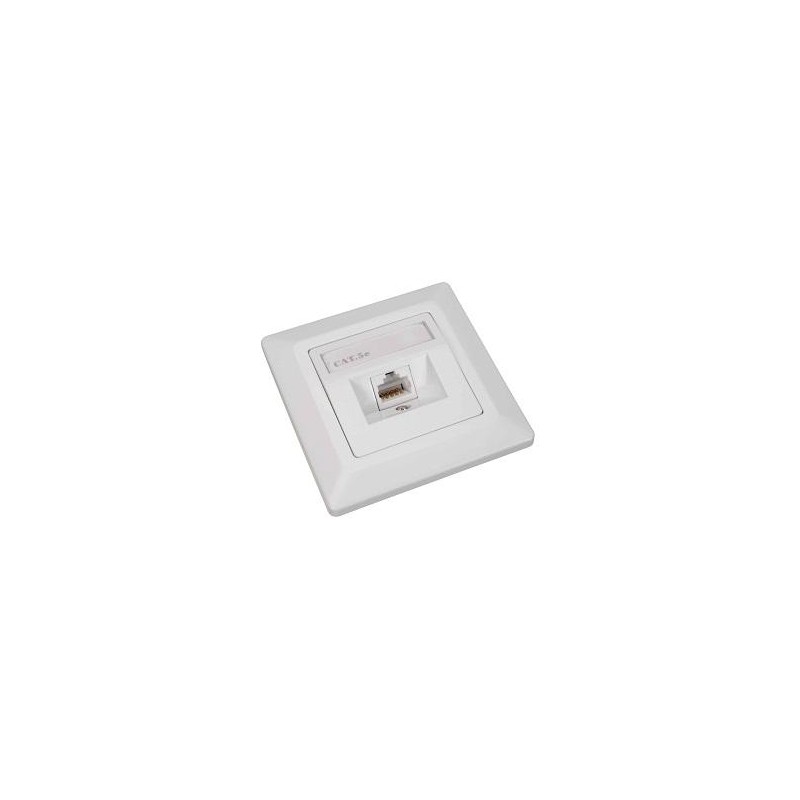

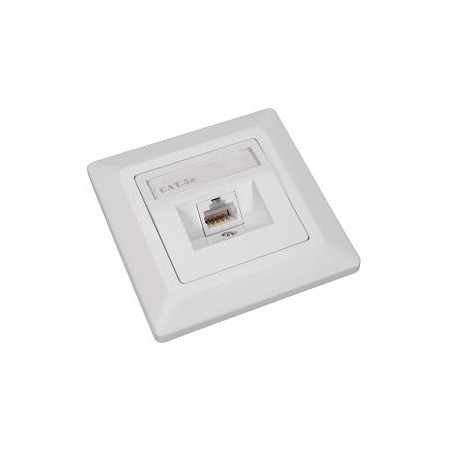

Solarix Eth. Socket CAT5E STP 1 x RJ45 flush-mounted white SX9-1-5E-STP-WH

Solarix SX9-1-5E-STP-WH

SX9 sockets are an important part of the Solarix product line - category 5E. The sockets are of the German style type and their parameters meet the requirements specified in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 including all updates for category 5E. SX9 sockets offer high reliability, maximum functionality and very easy installation. They are equipped with one or two RJ-45 ports with a 45° angle . Wires of AWG 26–22 are cut into the IDC Krone type terminal block. The contacts are marked on the terminal block with a color scheme according to the type of connection, either according to the T568A or T568B standard. SX9 sockets of the Solarix system - category 5E are available in both unshielded and shielded versions and are intended for installation under the surface or in window sill trays. When using the SX9-0-WH box, this type of socket can also be used for surface installation. The color of the drawer and box is white.

BASIC SPECIFICATIONS

Connector type: RJ-45

Number of connectors: 1

Category: 5e

Design: flush-mounted

Dimensions: 80 × 80 mm

Color: white
