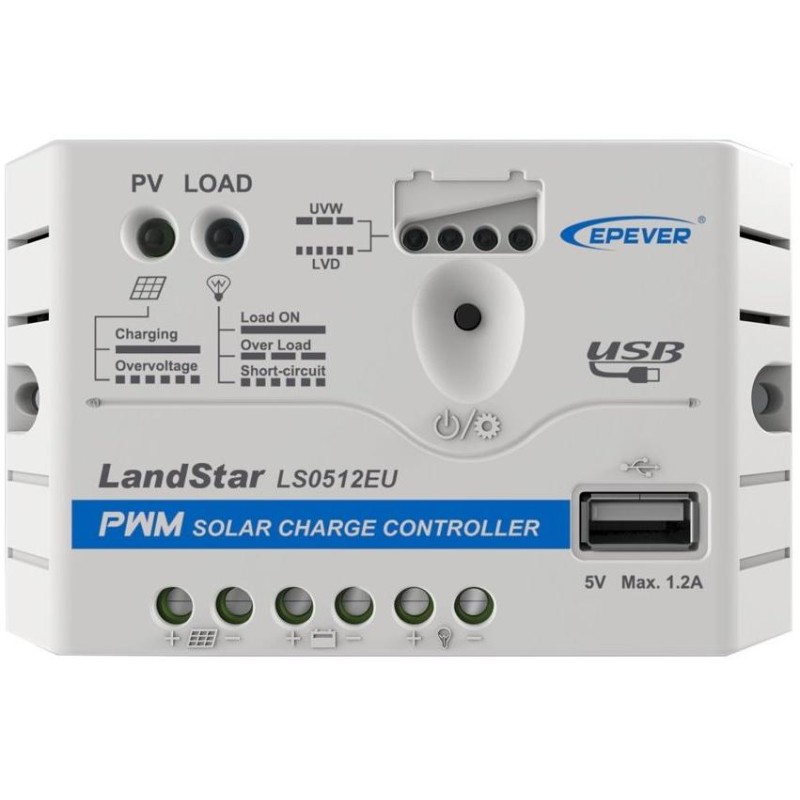

EPEVER LS0512EU solar PWM controller 12V, 5A, input 30V

EPEVER LS0512EU

This 12 V PWM solar controller is designed for small island solar systems . It is a cheap way to backup power. The controller is used to control the flow of energy from a solar panel or power supply to batteries and appliances. It works with a voltage of 12 V and currents up to 5 A. The advantage is a very simple and easy installation, reliable operation and a USB power port (5 V, max. 1.2 A) .

Features:

•

• Intelligent 3-phase PWM charging

• Overvoltage and battery discharge protection

• Short circuit protection

• Overload protection

• High voltage protection

• Operating temperature: -35 to +55 °C

• Maximum connection cable size: 2.5 ^mm2 (14 AWG)

• Protection: IP20

• Designed for indoor installation, wall mounting

• Easy installation

• USB power port (5V, max. 1.2A)


Note: The controller disconnects and connects the battery according to the characteristics of lead batteries.

BASIC SPECIFICATIONS
