TINYCONTROL rack-mounted power distribution module 7port, power measurement, MQTT, 1wire and I2C, 2 digital inputs

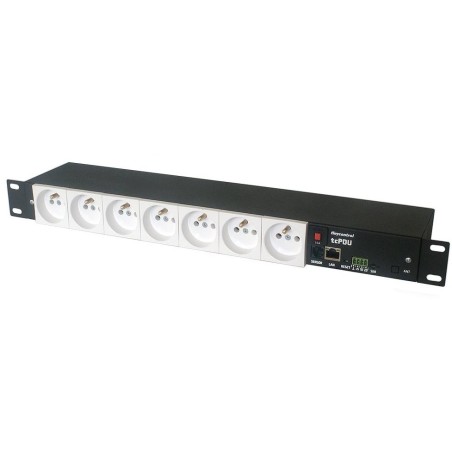

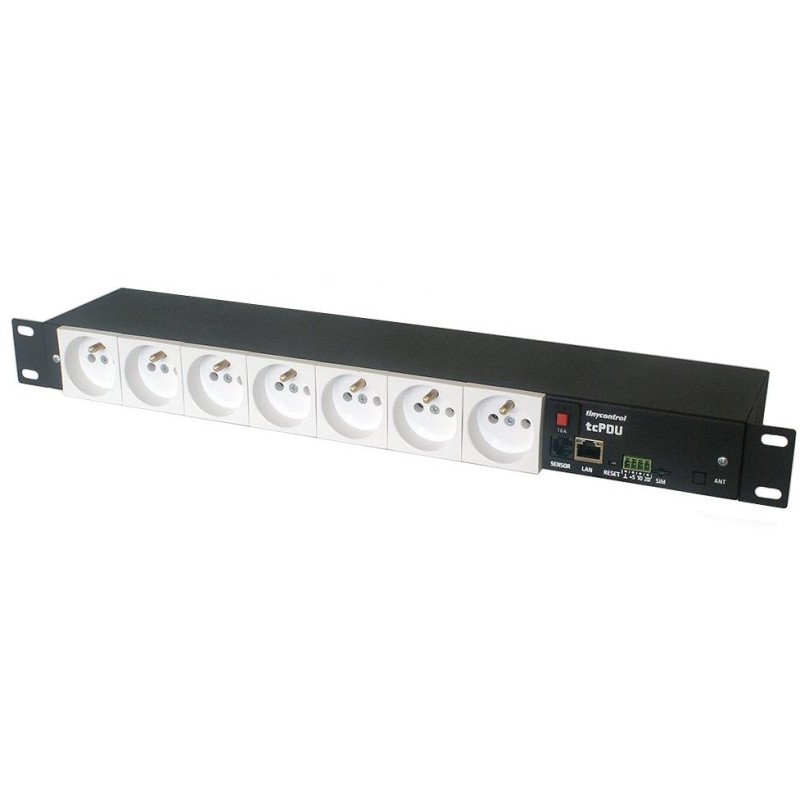

Tinycontrol rack-mounted power distribution module

Controlled power distribution unit for mounting in a standard 19" rack. It is equipped with seven independently controlled sockets connected to the 230 V mains voltage.
The unit can be managed via the built-in web server or SNMP or MQTT via the physical Ethernet interface.

The device is equipped with energy consumption monitoring , which monitors the current network voltage, current, active/reactive power and calculates the consumed energy. It has 2 logic inputs for monitoring, for example, the status of the door opening or a power outage (if supported by UPS). The unit has a separate 10 A automatic circuit breaker for sockets, with the possibility of remote monitoring and notification in case of disconnection. Other advantages include the Watchdog function, which monitors the set IP addresses and resets the assigned network sockets in the absence of a ping response. There is also an RJ-12 (1Wire/ I2C) interface for optional sensors (e.g. DS18b20).

•

• Simple and intuitive management via a website with the ability to display data from other optional sensors.

• SNMPv2 and v3 protocol support with reporting.

• MQTT protocol support - ability to connect to a free server for data and graphs, control and monitoring in a mobile application. TLS encryption support.

• The HTTP protocol allows you to send sensor data or status information to the server and control other devices as part of event management.

• The unit allows periodic switching on, off or delayed switching on to prevent overload.

• Two buses for monitoring: 1Wire for temperature sensors (supports up to 8 sensors) and I2C for humidity and temperature sensors with dew point calculation.

• Two logic inputs for connecting two-state sensors, e.g. a reed switch monitoring door opening or a mains voltage presence sensor.

• Protection of the outlet sockets by an automatic 10 A fuse, independent of the electronics power supply. In the event of a circuit break, information is displayed on the screen (notification can also be set).

• Monitoring of current, voltage, active/reactive power and 6 energy meter fields for reading at specified times or hours (e.g. daily reset, separate reading for high and low tariff).

• When managing events, it is possible to use up to 3 conditions with logical functions to automate tasks - e.g. switching outputs depending on temperature, the state of logical inputs and sending messages, e.g. about a power failure.

• The scheduler allows you to turn outputs on and off according to a calendar, periodically at selected intervals, and reset or read electricity meters at specified times.

• The Watchdog feature monitors specific IP addresses and resets outputs if they do not respond. Many parameters of the ping command are configurable (e.g. delay time, reset recovery time, etc.).

• Email notifications for selected events.

• HTTPS support, time setting according to NTP server, administrator and multiple user account, backup settings and software updates via website.


Usage examples:

•

• Server cabinets

• Low power heating control

• Power supply for devices requiring remote control

• Power for devices requiring temporary switching on and off
