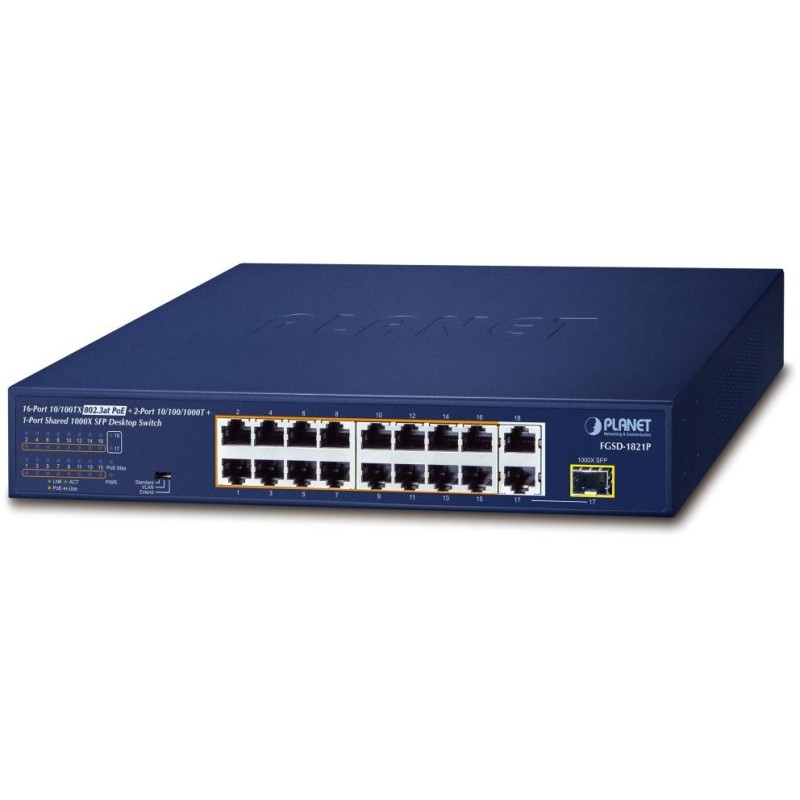

PLANET FGSD-1821P
PoE+ switch, 2x 10/100/1000 Base-T RJ-45, 16x 10/100 Base-TX RJ-45 with 802.3af/at injectors, 1x SFP slot 1000 Base-SX/LX/BX (shared with port 17), PoE power output up to 185 W.
LED indication of PoE port usage, DIP switch for switching Standard/VLAN/Extend mode, power saving mechanisms according to IEEE 802.3az.
Switch with PoE+ (Power over Ethernet) ports for centralized power supply of devices over Ethernet such as IP cameras, Wi-Fi elements or VOIP phones and with the option of connecting to the infrastructure using two Gigabit RJ-45 uplink ports or an optical SFP port.
The design of the device is suitable for installation in home or office spaces, as well as for applications in local distribution boards.
The output power of the PoE ports is regulated depending on the power consumption of the powered devices by EEE (Energy-Efficient Ethernet) mechanisms according to IEEE 802.3az.
The Switch has a manual mode switch:
- Standard - the switch powers devices at a distance of max. 100 m.
- VLAN - ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be prevented.
- Extend - the switch powers devices up to 250 m with reduced throughput of 10 Mbps per port.
BASIC SPECIFICATIONS
Physical properties:
Ports: 16x 10/100 Base-TX RJ-45, 2x 10/100/1000 Base-T RJ-45, 1x SFP 1000 Base-SX/LX/BX
Memory: 16k MAC addresses
Throughput: 7.2 Gbps bus, 5.36 Mpps operational (64B)
Transmission support: JumboFrame 16 KB
Design: 1U rack
Power supply: internal AC 100-240 V (50-60 Hz), total power consumption up to 207 W
Protection: surge protection up to 6 kV, ESD up to 8 kV
Operating temperature: 0 to +50 °C
Dimensions: 280 x 180 x 44 mm
Weight: 1.8 kg
PoE function:
Total power output: 185 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 16x up to 32 W
Power supply type: End-span
Advanced features:
protection (of a circuit) against interference between ports
automatic detection of powered device
PD alive function support
