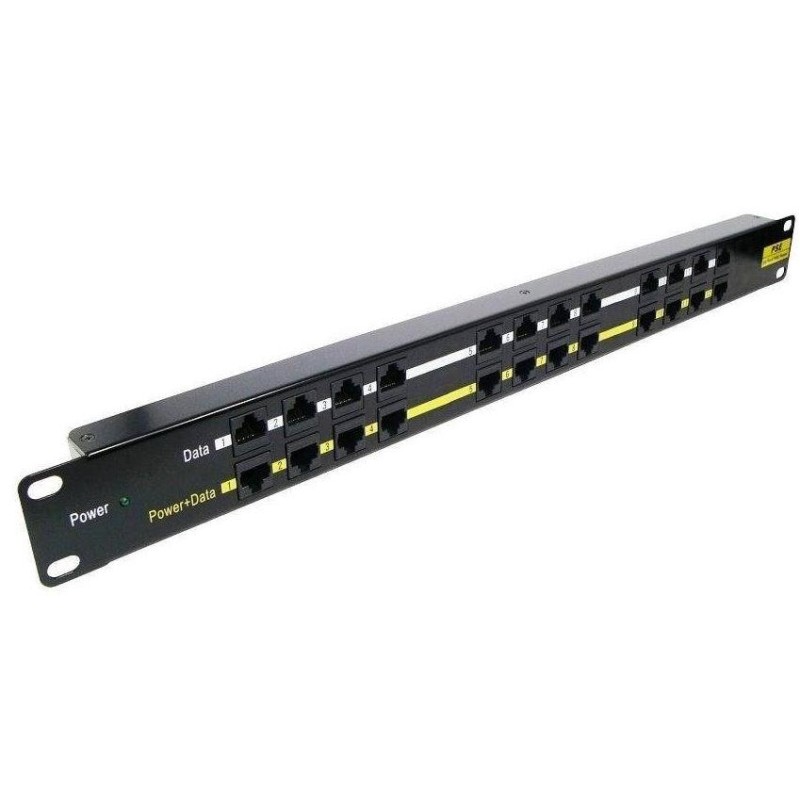

XtendLan POE-PAN12
A professional panel that integrates 12 PoE passive injectors and is therefore suitable for powering up to twelve devices with an integrated PoE extractor.
A very suitable solution for powering wireless devices, IP phones, IP cameras, etc. If the powered device does not have a PoE extractor, it can be combined with a passive POE splitter, see related documents.
The main advantages of the device include :
- 19" rack design
- LED indicator for visual monitoring of operation
- Grounding element for filtering out overvoltage on the back of the panel
- Resettable overcurrent protection (OCP protection 650 mA) on each port
- Input for power connector jack 5.5×2.1 mm center positive
Connection:
On one side, Ethernet ports, e.g. from a switch (without power), are connected to the RJ45 connectors.
On the other side (marked PoE), UTP cables are then connected, leading to the device, which they also power.
Two unused pairs of the Ethernet cable are used for power supply. Power is supplied in pairs 4,5 (+) and 7,8 (-).
BASIC SPECIFICATIONS
Standards: TIA/EIA 568 Cat.5
Ports: 12x RJ-45, 12x RJ-45 PoE 10/100 Mbps
PoE support: yes
Dimensions: 482.6 x 44.3 x 21.8 mm
