Planet IPOE-171-60W PoE injector IEEE802.3bt, 60W, DIN, IP30, -40~75°C

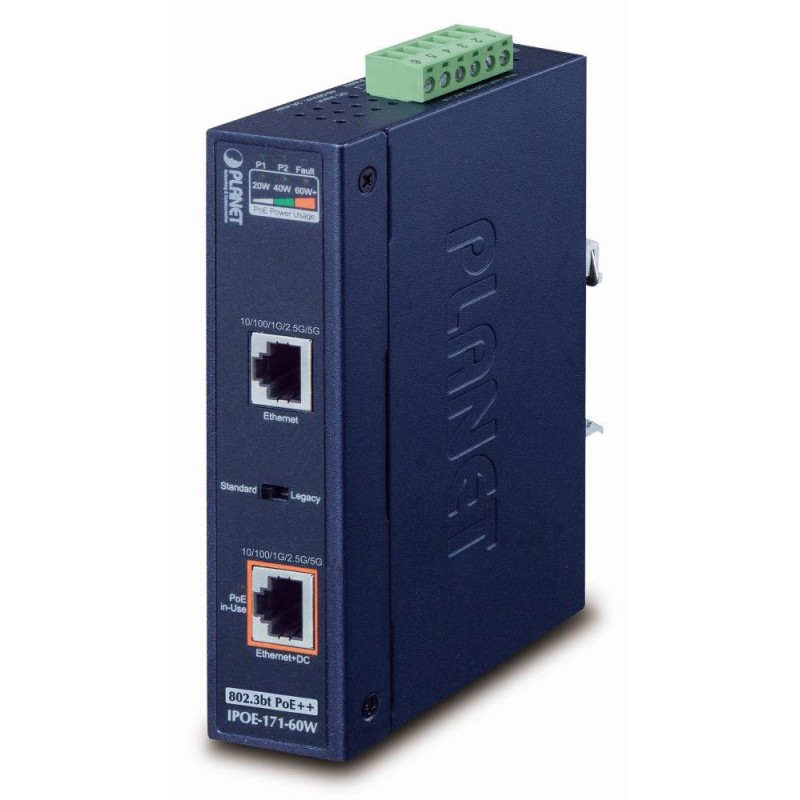

PLANET IPOE-171-60W

Industrial injector for power supply via Ethernet cable, IEEE 802.3bt PoE++ standard up to 60 W power consumption , also works on 1/2.5/5Gb connections.

IP30 protection, metal housing, operating temperature -40 to +75 °C , DIN rail mounting or directly on the wall, ESD protection up to 6 kV, surge protection up to 6 kV, PoE modes Standard/Legacy/Force , redundant power supply DC 48-56 V.

Industrial "Power over Ethernet Injector" IEEE 802.3bt with a maximum load capacity of 60 W for powering devices over Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices, POS (point of sale), kiosks, PoE lighting or Wi-Fi access points.

The injector has an increased load capacity compared to the IEEE 802.3at standard, making it ideal for applications in camera systems and VoIP telephone networks. PoE power supply can also be implemented on 5Gigabit Ethernet, supporting 802.3/802.3u/802.3ab/802.3bz (2.5G/5GBase-T). The injector is backward compatible with the previous generation IEEE 802.3af/at .

IEEE 802.3bt devices self-detect whether they are connected and are capable of receiving power from Ethernet. Devices powered in this way are also protected against damage due to incorrect connections.

BASIC SPECIFICATIONS

Interface: 2 x RJ-45 10/100/1G/2.5G/5GBase-T (1 x data input, 1 x PoE (data + power))

Total power output: up to 60 W, IEEE 802.3at PoE+, IEEE 802.3bt PoE++

Port load capacity: up to 60 W

Power supply: DC 48-56 V (max. 2 A) redundant (power supply not included)

Operating temperature: -40 to +75 °C

Dimensions: 135 x 87.8 x 32 mm

Weight: 430g
