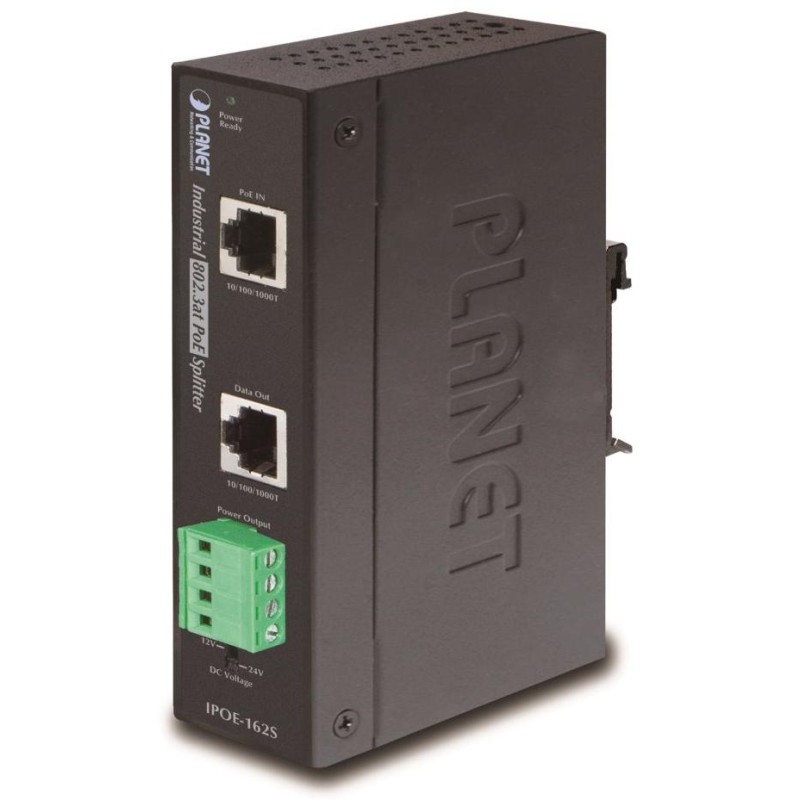

PLANET IPOE-162S
Industrial power converter via Ethernet cable of the 802.3at standard (splitter, output 12V/24V SS). Also works on Gigabit 1000Base-T connection.
IP30 protection, aluminum housing, operating temperature -40 to 75 degrees C, mounting on DIN rail or directly on the wall.
Industrial "Power over Ethernet splitter" IEEE 802.3at with a maximum load capacity of 25W for powering devices over Ethernet. Designed for outdoor use with PTZ cameras or information kiosks. The splitter according to the IEEE 802.3at standard has an increased load capacity, making it ideal for applications in camera systems and VoIP telephone networks.
PoE power supply can also be implemented on gigabit Ethernet, supports IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T. The output voltage of the IPOE-162S splitter can be selected by DIP switch 12V SS or 24V SS.
BASIC SPECIFICATIONS
Interface: 2 x RJ-45 10/100/1000 Mbps : 1 x Data input, 1 x Data + Power output, 1 x 4-pin DC power output
Total power output: up to 25 W, IEEE 802.3at
Power supply: IEEE 802.3at 48-56V DC (power supply not included)
Operating temperature: -40 to 75°C
Dimensions: 135 x 87.8 x 32 mm
Weight: 421g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mounting
Wall mounting using the supplied frame
