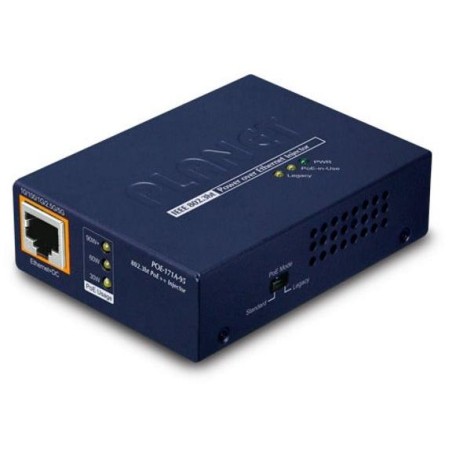

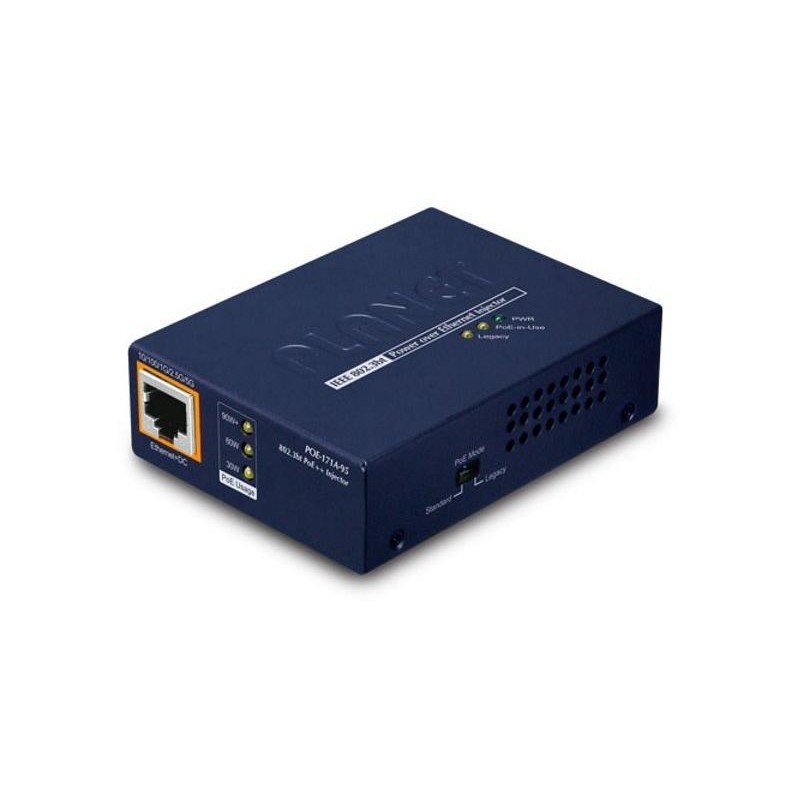

Planet POE-171A-95 Ultra PoE injector 802.3bt up to 95W, 1000Base-T, desktop

PLANET POE-171A-95

Single-port PoE injector for power supply via Ethernet cable according to IEEE 802.3bt up to 95 W.

It has two 10M/100M/1G/2.5G/5GBASE-T RJ-45 copper interfaces to handle extremely large amounts of data transmission.

End and Mid-span. Backward compatible with IEEE 802.3af/at PD. Desktop or chassis, external power supply DC 52-56 V.

It is designed specifically for the increasing power consumption demands of devices such as PTZ cameras, all-in-one computers, or other network devices requiring sufficient power supply.

The PoE-171A-95 transmits data with 56 V DC power over twisted pair as a 95-watt PoE injector, and the connected POE-172S splitter separates digital data and power into three selectable outputs (12 V/ 19 V/ 24 V DC) with a distance of up to 100 meters.

BASIC SPECIFICATIONS

Interface: 2 x RJ-45 10/100/1000 Mbps: 1 x Data input, 1 x PoE (Data + Power) output

Total power supply: up to 95 W, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af

Port load capacity: up to 95 W

Power supply: 52-56 V DC, max. 2.5 A

Operating temperature: 0 to 50 °C

Dimensions: 94 x 70.3 x 26.2 mm

Weight: 250g
