Planet POE-171S Ultra PoE splitter 802.3at up to 60W - 12/19/24V, 1000Base-T, -10 to 60°C, desktop

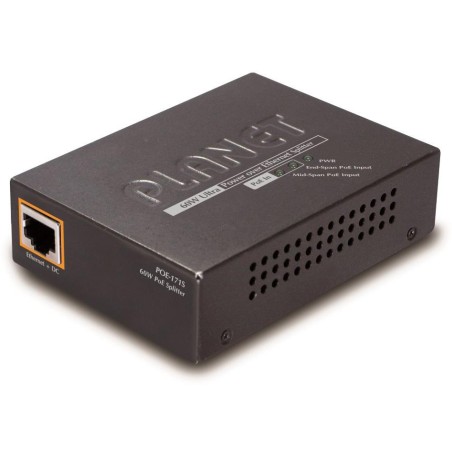

PLANET POE-171S

Gigabit splitter for power over Ethernet cable. Part for direct powering of remote devices (802.3at) up to 60W.

Selectable output voltage 12/19/24V DC. Desktop or chassis installation.

"Power over Ethernet splitter" with a maximum load capacity of up to 60 W for powering devices over Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices or Wi-Fi access points. It can also be used to power devices such as embedded computers or LCD displays, kiosks, etc. PoE power can also be implemented on gigabit Ethernet, power is transmitted over all UTP/FTP Ethernet cables, the injector supports IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T.

BASIC SPECIFICATIONS

Interface: 1 x RJ-45 PoE input, 1 x RJ-45 data + DC output

Total power output: up to 60 W, IEEE 802.3af, IEEE 802.3at

Port load capacity: up to 60 W

Power supply: 52 - 56V DC

Operating temperature: 0 to 50°C

Dimensions: 95 x 70 x 26 mm

Weight: 300g
