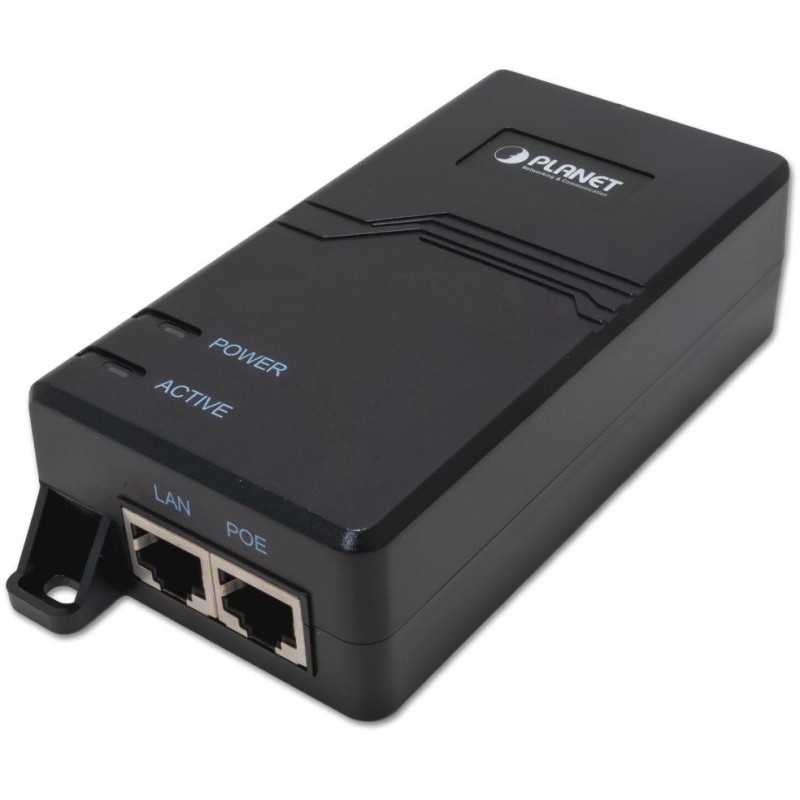

Planet POE-163 PoE injector IEEE802.3at, 30W, 1000Base-T, for wall

PLANET POE-163

Gigabit converter for power over Ethernet cable. Part for powering remote 802.3at devices (injector) up to 30W.

Wall or countertop mountable. Internal power supply.

"Power over Ethernet Injector" IEEE 802.3at with a maximum load capacity of 30W for powering devices over Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices or WiFi access points.

PoE power supply can also be implemented on gigabit Ethernet, supports IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T.

The injector is backward compatible with the previous generation IEEE 802.3af. If the powered device does not have the ability to be powered via PoE IEEE802.3at, you will need a splitter. If you have a device that can be powered via PoE 802.3af/802.3at, you only need the POE-163.

BASIC SPECIFICATIONS

Interface: 2x RJ-45 10/100/1000 Mbps: 1x Data input, 1x PoE output (Data + Power)

Total power output: up to 30 W, IEEE 802.3at

Port load capacity: up to 30 W

Power supply: 52 - 56V DC

Operating temperature: 0 to 50°C

Dimensions: 115 × 62.5 × 31 mm

Weight: 185g

Usage examples:
