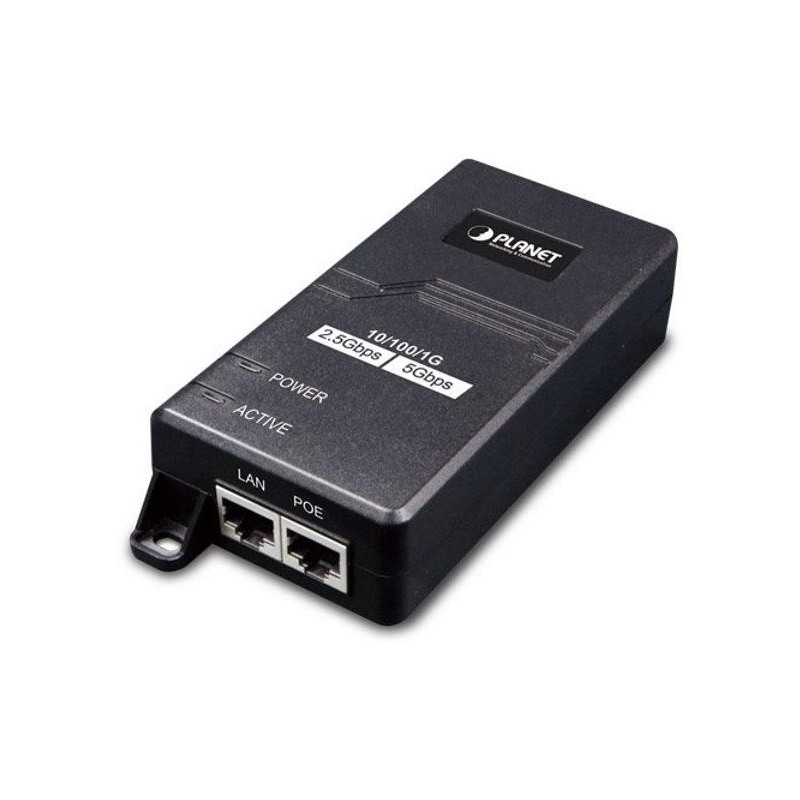

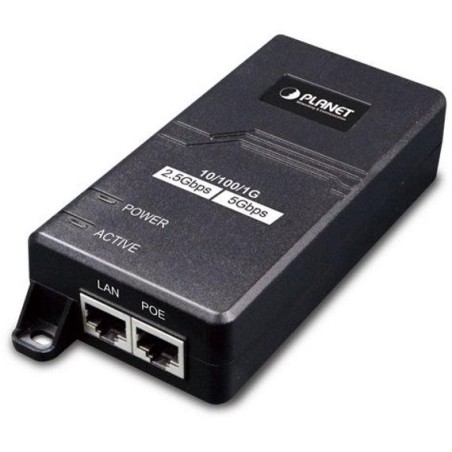

Planet POE-165 PoE injector IEEE802.3at, 30W, 1G/2.5G/5G, for wall

PLANET POE-165

Converter for powering over Ethernet cable. Part for powering remote 802.3at devices (injector) up to 30 W.

Wall or countertop mountable. Internal power supply.

"Power over Ethernet Injector" IEEE 802.3at with a maximum load capacity of 30 W for powering devices over Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices or Wi-Fi access points. PoE power can also be implemented on Gigabit Ethernet, supports IEEE 802.3 / 802.3u / 802.3ab / 802.3bz.

The injector is backward compatible with the previous generation IEEE 802.3af. If the powered device does not have the ability to be powered via IEEE 802.3at PoE, you will need a splitter. If you have a device that can be powered via 802.3af/802.3at PoE, you only need the POE-165.

BASIC SPECIFICATIONS

Interface: 2x RJ-45 10/100/1000 Mbps/2.5 Gbps/5 Gbps: 1 x Data input, 1 x PoE (Data + Power) output

Total power output: up to 30 W IEEE 802.3at

Port load capacity: up to 30 W

Power supply: 100-240V AC, 50/60Hz, 0.75A

Operating temperature: 0 to 50 °C

Dimensions: 115 x 62.5 x 31 mm

Weight: 204g
