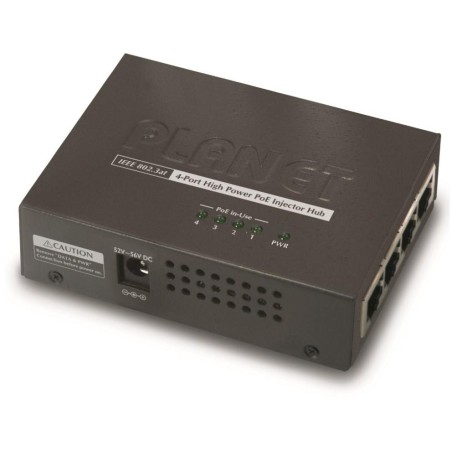

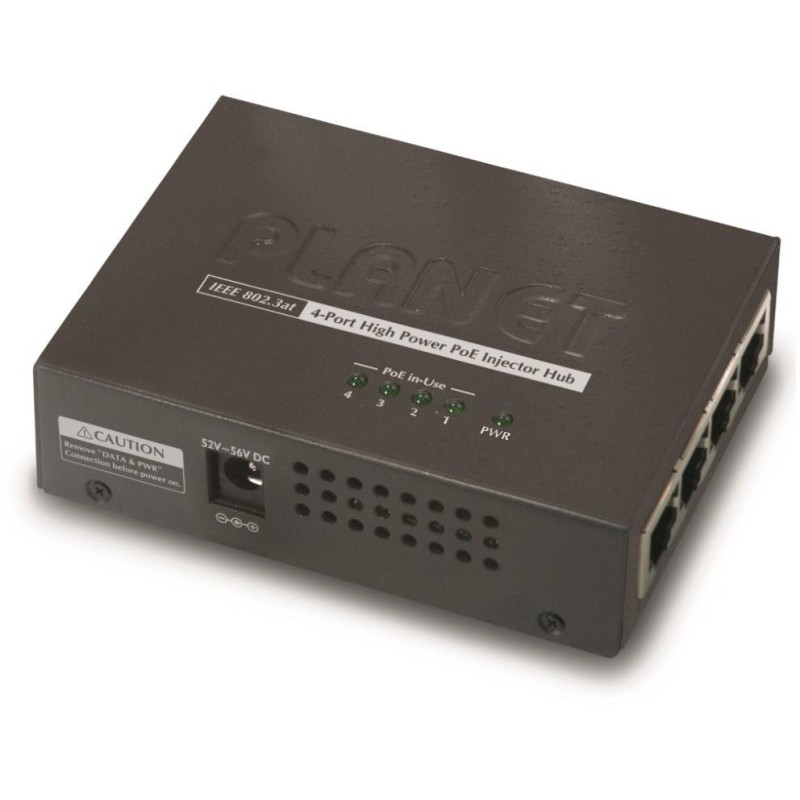

Planet HPOE-460 PoE injector, 4x 1Gbps PoE 802.3at 30/120 W

PLANET HPOE-460

PoE 4-port injector for power supply over Ethernet cable. IEEE 802.3at standard, Mid-Span, power supply 120W. 4 data-in ports, 4 data+power out ports. DC 52~56V power supply.

PoE (power over ethernet) Injector HUB for powering devices over Ethernet according to IEEE 802.3af and multi-power devices IEEE 802.3at. It is designed to power devices such as PTZ or Speedome IP cameras or WiFi access points. There are a total of 4 ports with a total output power of 120W, the injector is pass-through, the power is attached to an existing Ethernet Cat5/5e/6 line.

If the end device does not support IEEE802.3at, you will need a POE-161S, which will provide power for the remote device for the given cable route.

BASIC SPECIFICATIONS

Interface: 8 x RJ-45 10/100/1000 Mbps: 4 x Data input, 4 x Data + Power output

Total power output: up to 120 W, IEEE 802.3af, IEEE 802.3at

Port load capacity: up to 30.8 W

Power supply: DC 52 - 56V

Operating temperature: 0 to 50°C

Dimensions: 97 x 70 x 26 mm

Weight: 220g
