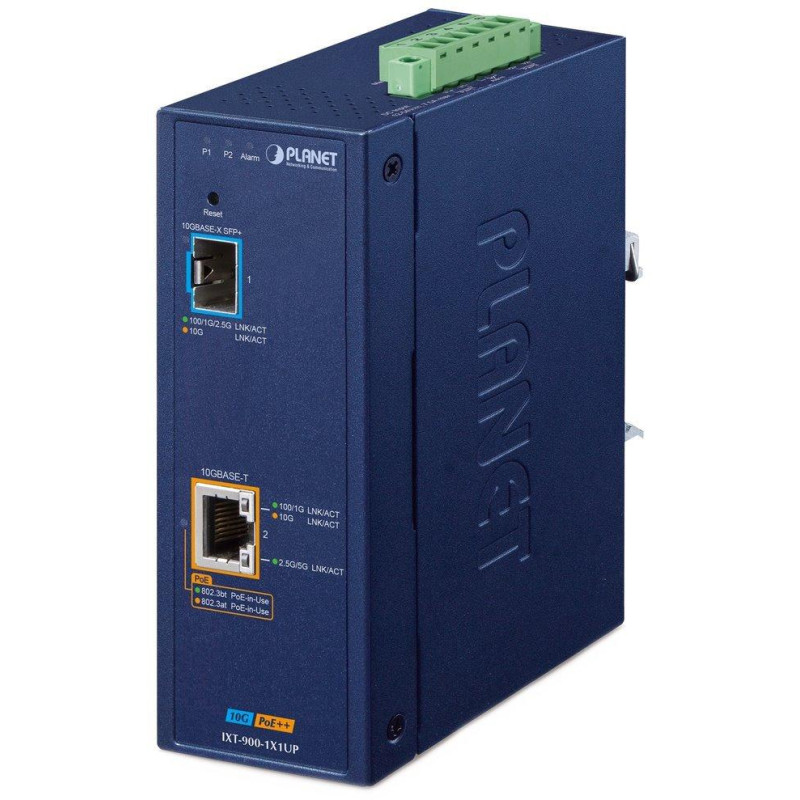

PLANET IXT-900-1X1UP
PoE++ converter for easy transition between metallic and optical lines ( 10G/5G/2.5G/1G/100M Base-T to 10G/2.5G/1G/100M Base-X ).
Industrial design -40 to 75°C, shockproof, IP40 protection , ESD protection, DIN installation , alarm output (relay; DC 24 V/ 1 A), dual power supply DC 12–54 V.
Industrial Ethernet devices are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type). It supports remote management via a web interface, command line interface (CLI) and SNMP for comprehensive remote monitoring.
The PoE++ injector with a total power of up to 95 W allows easy installation of devices such as IP cameras without the need for additional power adapters.
Possible monitoring withCloudViewer Pro mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 1× 10G/5G/2.5G/1G/100M Base-T RJ-45, 1× 10G/2.5G/1G/100M Base-X SFP+
Processing technology: Store-and-forward
Throughput: 40 Gbps bus, operational 29.76 Mpps (64B)
Transmission support: JumboFrame 9K
Design: DIN rail, wall-mounted
OAM support: no
Power supply: 2× DC 12–54 V, terminal block, connection possible from two different sources (not included in the package)
Protection: ESD up to 4 kV DC contact, up to 8 kV DC air
Operating temperature: -40 to 75°C
Dimensions: 135 × 87 × 50 mm
Weight: 659g
Can be installed in a chassis: no
POE function:
Total power output: 95 W, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of injectors: 1× up to 95 W
Power type: End-span, Mid-span, Legacy, Force
Advanced features:
automatic detection of powered device (PD)
PD alive-check
Integrated scheduler for scheduled shutdown of powered end elements (PoE Schedule)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
The device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
Layer 2 features:
Port configuration - port disable/enable, full and half duplex mode selection, flow control
VLAN - IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q tunneling, Up to 256 VLAN groups from 4096 VLAN IDs
Bandwidth Control - Ingress/Egress: 16-10,000,000 Kbps
QoS - Traffic classification, strict priority and WRR, 8-level priority for switching, CoS/802.1p, DSCP, IP precedence
Ring - ERPS support in accordance with ITU-T G.8032, recovery time < 500 ms
Mmanagement:
Telnet, Web, SNMP v1, v2c
SSHv2, TLSv1.2, SNMPv3
LLDP
PLANET Smart Discovery Utility
PLANET NMS Controller
PLANET CloudViewer Pro (mobile app)
Remote syslog, local system log, SNMP trap
RFC 1213 MIB-II, RFC 2863 IF-MIB, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2737, Entity MIB, RFC 2819 RMON MIB (groups 1, 2, 3 and 9), RFC 3411 SNMP-Frameworks-MIB, MAU-MIB
Standards:
IEEE 802.3u, 100BASE-TX/FX
IEEE 802.3ab, 1000BASE-T
IEEE 802.3bz, 2.5G/5GBASE-T
IEEE 802.3an, 10GBASE-T
IEEE 802.3z, 1000BASE-SX/LX
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3x full-duplex flow control
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 2474 DSCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
ITU-T G.8032 ERPS Ring
