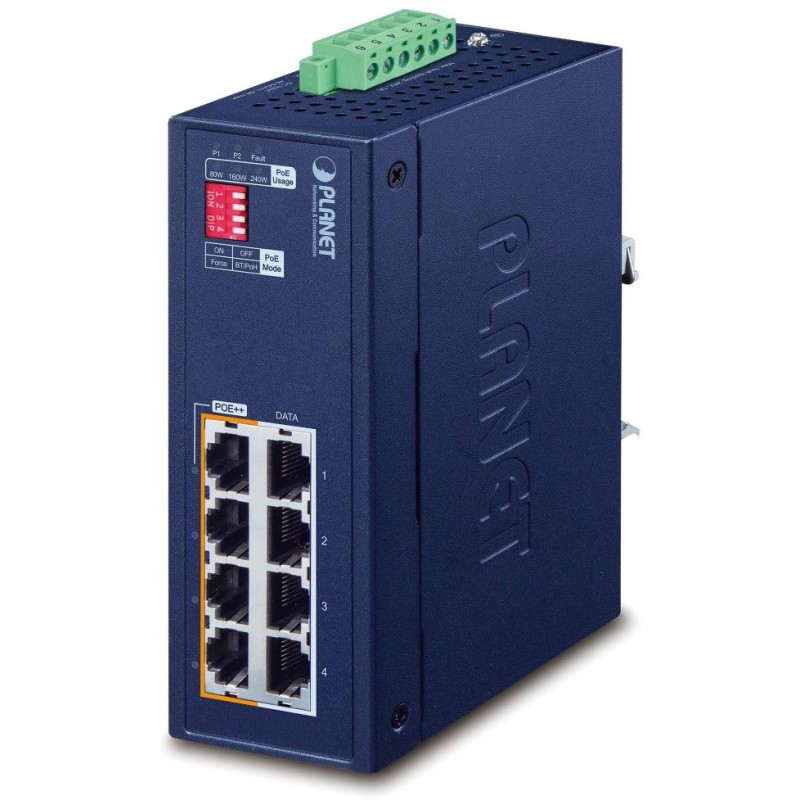

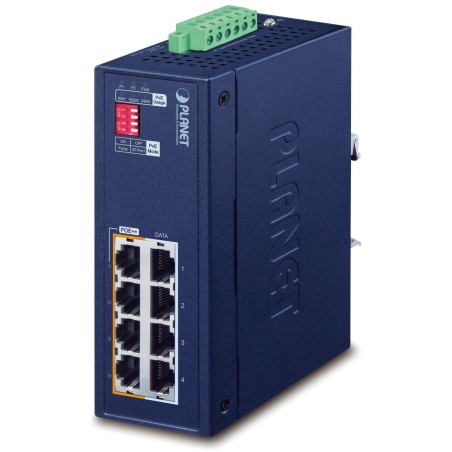

PLANET IPOE-470
Industrial injector for power supply via Ethernet cable, IEEE 802.3bt PoE++/PoH standard up to 240 W power consumption .
IP30 protection, metal housing, operating temperature -40 to +75 °C , DIN rail mounting or directly on the wall, ESD protection up to 6 kV, surge protection up to 6 kV, DIP switch , PoH power support up to 95 W/port (Power over HDBaseT), redundant power supply DC 48-54 V.
Industrial "Power over Ethernet Injector" IEEE 802.3bt + PoH (Power over HDBaseT) with a maximum load capacity of 240 W for powering devices over Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices, POS (point of sale), kiosks, PoE lighting or Wi-Fi access points.
The injector has increased load capacity compared to the IEEE 802.3at standard, making it ideal for applications in camera systems and VoIP telephone networks. The injector is backward compatible with the previous generation of IEEE 802.3at .
IEEE 802.3bt devices self-detect whether they are connected and are capable of receiving power from Ethernet. Devices powered in this way are also protected against damage due to incorrect connections.
BASIC SPECIFICATIONS
Interface: 8x RJ-45 10/100/1000Base-T (4x data input, 4x PoE+data output)
Total power output: up to 240 W, IEEE 802.3bt PoE++, PoH (Power over HDBaseT)
Port load capacity:
up to 240 W at DC 52-54 V power supply
up to 120 W at 48 V DC power supply
max. 90 W/port - 802.3bt PoE++
max. 95 W/port - PoH
max. 60 W/port - Force mode
max. 36 W/port - 802.3at PoE+
Power supply: DC 48-54 V, redundant (power supply not included)
Operating temperature: -40 to +75 °C
Dimensions: 135 x 87.8 x 50 mm
Weight: 537g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
