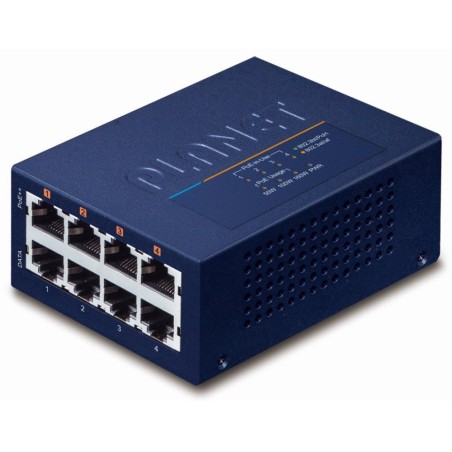

Planet UPOE-400 PoE injector, 4x 1/2.5/5G LAN, PoE 802.3bt 90/160 W

PLANET UPOE-400

PoE 4-port injector for power supply via Ethernet cable, IEEE 802.3bt PoE++ standard up to 160 W power consumption , also works on 1/2.5/5Gb connections.

Metal housing, operating temperature 0 to +50 °C, mounting on DIN rail or directly on the wall, power supply DC 52-54 V.

The injector has an increased load capacity compared to the IEEE 802.3at standard, making it ideal for applications in camera systems and VoIP telephone networks. PoE power supply can also be implemented on 5 gigabit Ethernet, supporting 802.3/802.3u/802.3ab/802.3bz (2.5G/5GBase-T). The injector is backward compatible with the previous generation IEEE 802.3at .

IEEE 802.3bt devices self-detect whether they are connected and are capable of receiving power from Ethernet. Devices powered in this way are also protected against damage due to incorrect connections.

BASIC SPECIFICATIONS

Interface: 8 x RJ-45 10/100/1G/2.5G/5Gb/s: 4 x Data input, 4 x Data + Power output

Total power output: up to 180 W, IEEE 802.3bt PoE++

Port load capacity: up to 95 W (PoH + Legacy), up to 90 W (802.3bt), up to 60 W classic

Power supply: DC 52-54 V (power supply not included)

Operating temperature: 0 to +50 °C

Dimensions: 94 x 70.3 x 39.2 mm

Weight: 275g
