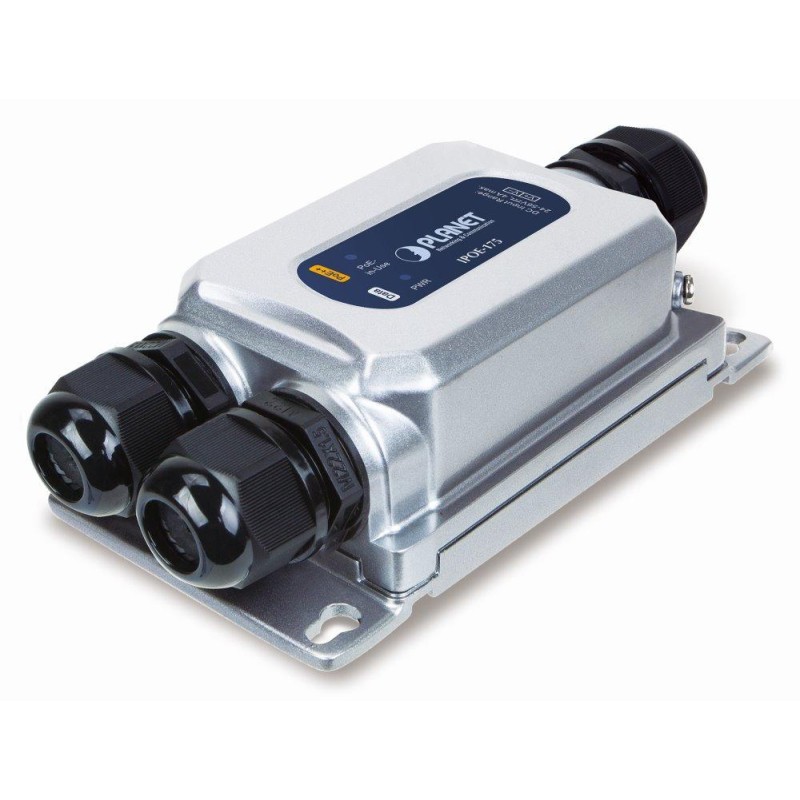

PLANET IPOE-175
Industrial injector for power supply via Ethernet cable, IEEE 802.3bt PoE++ standard up to 60 W , works on Gigabit 10/100/1000Base-T connection, the injector also supports PoH power supply up to 60 W (Power over HDbase-T) .
Waterproof IP67 , durable metal design IK10 , operating temperature -40 to +75 °C , ESD protection up to 6 kV (air up to 8 kV), surge protection up to 6 kV, DC 24-56 V power supply.
Industrial "Power over Ethernet Injector" IEEE 802.3at/bt with a maximum load capacity of 60 W for powering devices over Ethernet. Designed for use with PTZ cameras, VoIP devices or Wi-Fi access points.
The injector has increased load capacity compared to the IEEE 802.3at standard, making it ideal for applications in camera systems and VoIP telephone networks. PoE power supply can also be implemented on gigabit Ethernet, supporting 802.3/802.3u/802.3ab (10/100/1000Base-T). The injector is backward compatible with the previous generation IEEE 802.3at .
IEEE 802.3bt devices self-detect whether they are connected and are capable of receiving power from Ethernet. Devices powered in this way are also protected against damage due to incorrect connections.
BASIC SPECIFICATIONS
Interface: 2 x RJ-45 10/100/1000Base-T (1 x data input, 1 x PoE + data output)
Total power output: up to 60 W, IEEE 802.3bt PoE++
Power supply: DC 24-56 V (power supply not included)
Operating temperature: -40 to +75 °C
Dimensions: 150 x 72.94 x 43.8 mm
Weight: 339 g (with caps 373 g)
