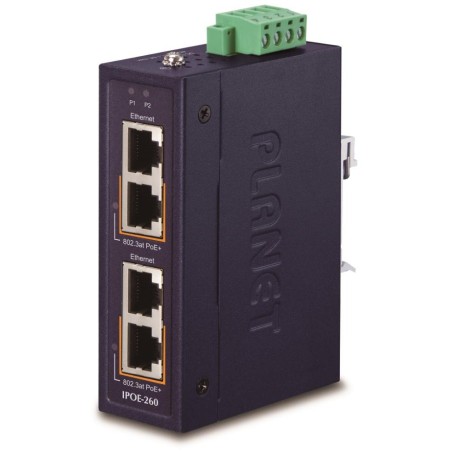

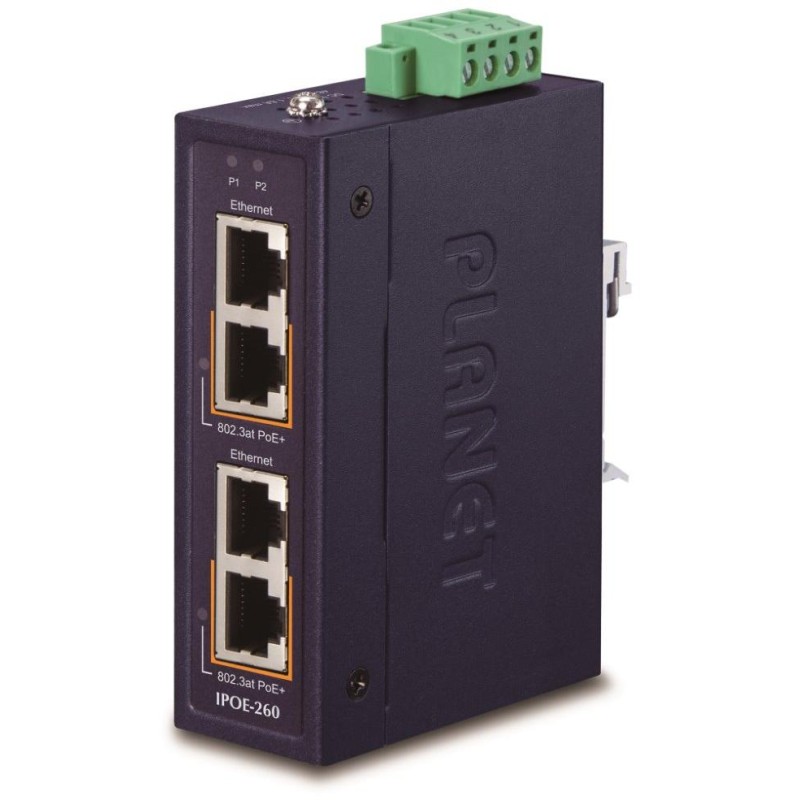

Planet IPOE-260 PoE industrial injector, 2x port, 4x1Gb, 2x 802.3at 36/72W, DIN, IP30, -40~75°C, dual power 48-56VDC

PLANET IPOE-260

Industrial injector for power supply via Ethernet cable, IEEE 802.3at standard up to 36 W power consumption. Also works on Gigabit connection.

IP30 protection, metal housing, operating temperature -40 to +75 °C , mounting on DIN rail or directly on the wall.

Industrial "Power over Ethernet Injector" IEEE 802.3at with a maximum load capacity of 36 W for powering devices over Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices or Wi-Fi access points.

The injector has an increased load capacity compared to the IEEE 802.3af standard (15.4 W), making it ideal for applications in camera systems and VoIP telephone networks. PoE power supply can also be implemented on gigabit Ethernet, supporting IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T.

The injector is backward compatible with the previous generation IEEE 802.3af.

IEEE 802.3at devices automatically detect whether they are connected and are capable of receiving power from Ethernet. Devices powered this way are also protected against damage from incorrect connections.

BASIC SPECIFICATIONS

Interface: 4 x RJ-45 10/100/1000 Mbps: 2 x Data input, 2 x PoE output

Total power output: up to 72 W, IEEE 802.3at

Port load capacity: up to 36 W at 56 V DC, up to 32 W at 48 V DC

Power supply: 48-56 V DC, redundant (power supply not included)

Operating temperature: -40 to +75 °C

Dimensions: 105 x 70 x 30 mm

Weight: 280g
