Planet LRP-101C-KIT, COAX PoE extender 10/100Base-TX, 802.3at-30W, EFT+ESD, range 1km, -20 to 70°C

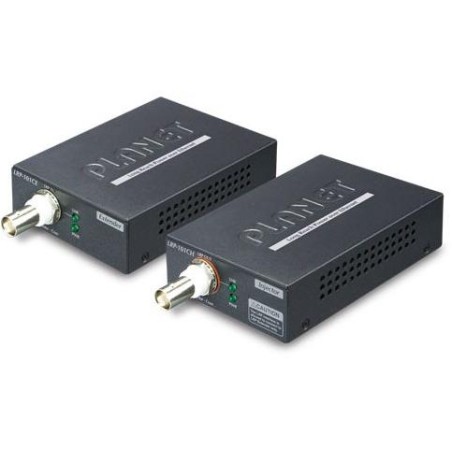

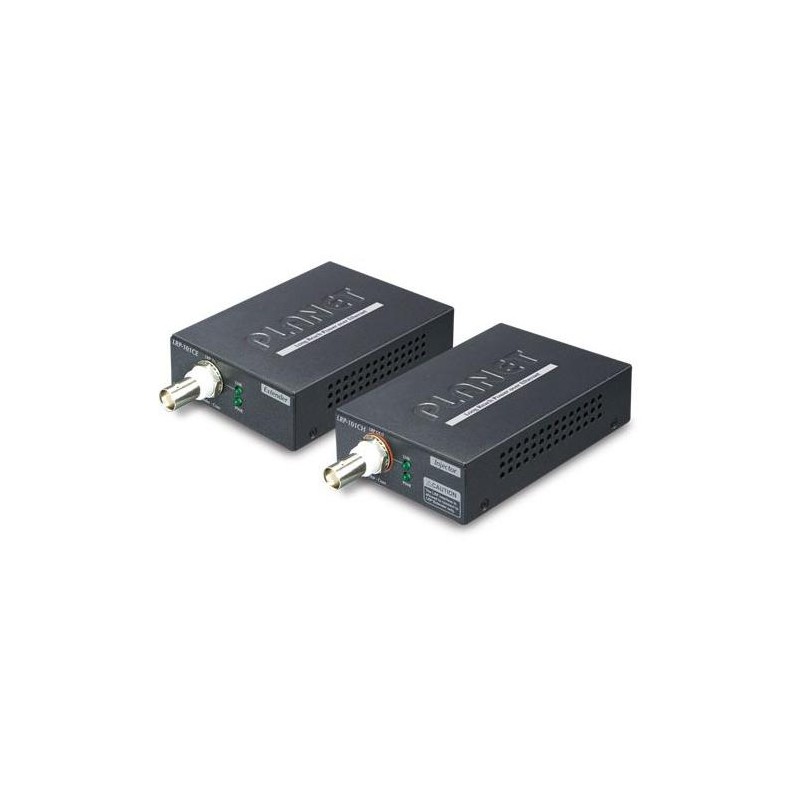

PLANET LRP-101C-KIT

PoE Ethernet extender to extend a 10/100 Mb Ethernet segment from 100 m to a distance of 1 km over coaxial cable, including IEEE 802.3at power support.

Long reach ethernet (LRE) IEEE 1901, LED indication, ESD+EFT protection, DC or PoE power supply, operation at -20 to 70°C.

Solution for extending the Ethernet segment, including increasing the PoE (power over Ethernet) power range from 100 m to 1 km over a coaxial cable, including maintaining power supply for IEEE 802.3at devices at the end of the line.

The extender application is ideal for use in places where IP cameras or wireless access points are used at longer connection distances. Technically, it is an integrated extension of the ability to install powered devices in places further away from the central switch or rack.

BASIC SPECIFICATIONS

Features:

•

• LED operating status indication

• Range 200 ms PoE+, 1000 ms PoE, 1600 m without PoE

• Coaxial transmission LRE (Long reach ethernet) according to IEEE 1901

• W-OFDM modulation

• AES-128 encryption

• Frequency spectrum 2 - 28 MHz


Physical characteristics of LRP-101CH:

Ports: 1 x RJ-45 10/100BASE-TX with PoE input 802.3at/af, 1 x BNC connector

Design: wall-mounted, DIN rail (requires bracket, not included)

Power supply: PoE 802.3af/at 48-56 V DC or 48-56 V DC adapter (not included)

Protection: ESD + EFT up to 2 KV DC

Operating temperature: -20 to 70 °C, humidity 5 - 95%

Dimensions: 94 x 70 x 26 mm

Weight: 200g

Physical characteristics of LRP-101CE:

Ports: 1 x RJ-45 10/100BASE-TX with PoE output 802.3at/af, 1 x BNC connector

Design: wall-mounted, DIN rail (requires bracket, not included)

Power supply: BNC PoC input 44-56 V DC

Protection: ESD + EFT up to 2 KV DC

Operating temperature: -20 to 70 °C, humidity 5 - 95%

Dimensions: 94 x 70 x 26 mm

Weight: 375g

POE function:

Typical application :

Possible uses:
