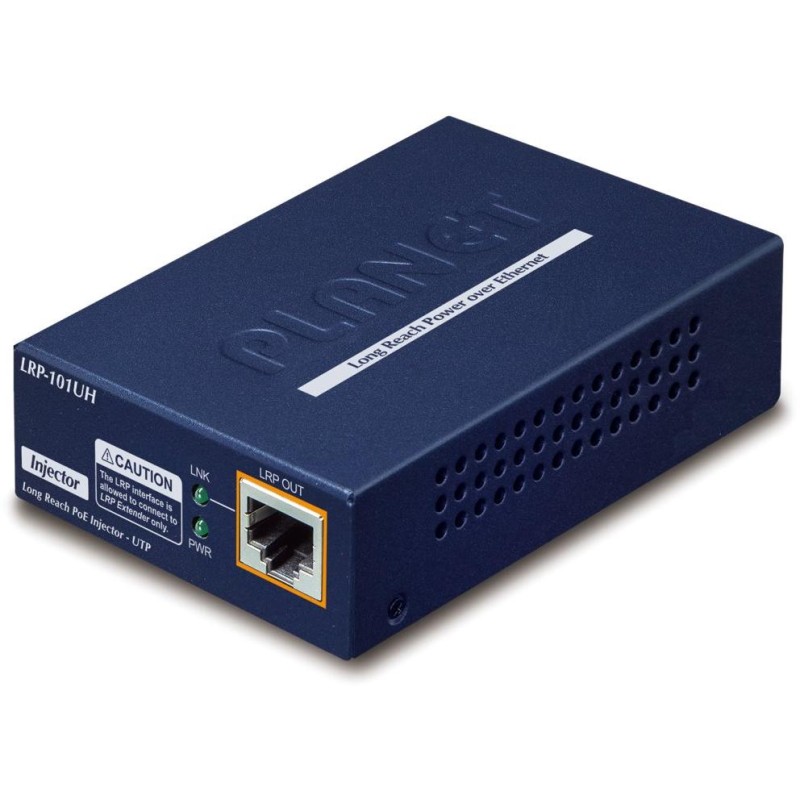

Planet LRP-101UH, UTP PoE extender, master, 10/100Base-TX, PoE 802.3at-30W, EFT+ESD, range 500m, -20 to 70°C

PLANET LRP-101UH

PoE Ethernet extender to extend a 10/100 Mbps Ethernet segment from 100 m to a distance of up to 500 m via UTP cable, including support for PoE power supply IEEE 802.3at/af .

Long Reach Ethernet (LRE) IEEE 1901 , LED indication, ESD+EFT protection, DC or PoE power supply (802.3at/af), operation at -20 to +70 °C .

The extender application is ideal for use in places where IP cameras or wireless access points are used at longer connection distances. Technically, it is an integrated extension of the ability to install powered devices in places further away from the central switch or rack.

BASIC SPECIFICATIONS

Features:

•

• LED operating status indication

• LRE (Long Reach Ethernet) transmission according to IEEE 1901

• W-OFDM modulation (Wavelet-OFDM)

• AES-128 encryption

• Frequency spectrum 2-28 MHz


Physical characteristics of LRP-101UH:

Ports: 1x RJ-45 LRP output, 1x RJ-45 10/100Base-TX with PoE input 802.3at/af

Design: wall-mounted, DIN rail (requires bracket, not included)

Power supply: PoE 802.3af/at DC 48-56 V or DC 48-56 V adapter (not included)

Protection: ESD (up to 4 kV DC) + EFT (up to 2 kV)

Operating temperature: -20 to +70 °C, humidity 5-95%

Dimensions: 94 x 70 x 26 mm

Weight: 193g

PoE function:

Typical application:

Possible uses:
