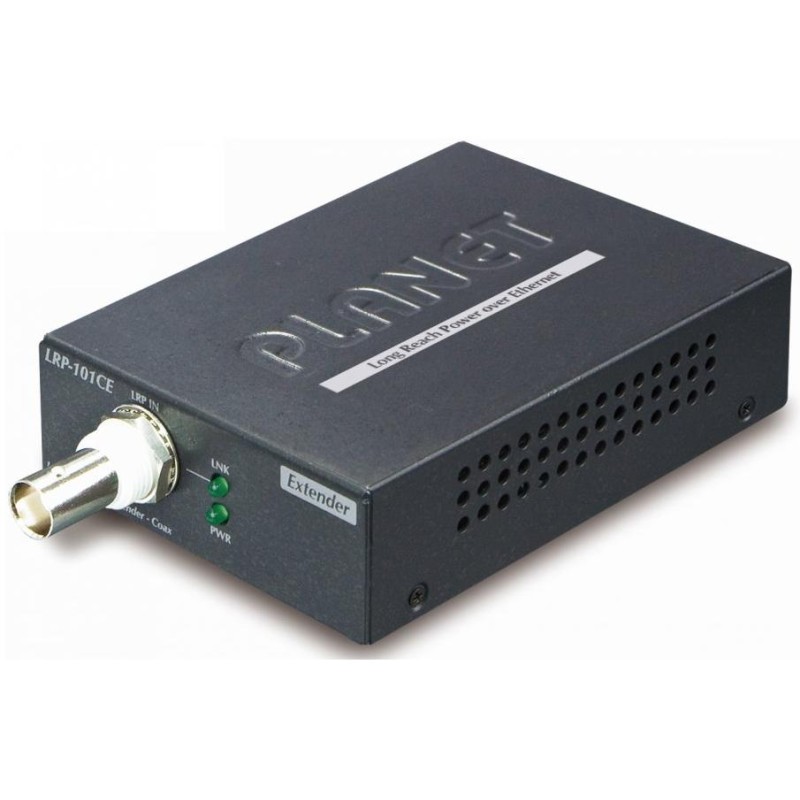

Planet LRP-101CE, COAX PoE extender, slave, 100Base-TX, PoE 802.3at-30W, EFT+ESD, range 1km, -20 to 70°C

PLANET LRP-101CE

PoE Ethernet extender to extend a segment from coaxial cable to 10/100 Mb Ethernet; distance up to 1 km over coaxial cable including IEEE 802.3at power support.

Long reach ethernet (LRE) IEEE 1901, LED indication, ESD+EFT protection, PoE power supply, operation at -20 to 70°C.

Solution for extending the Ethernet segment, including increasing the PoE (power over Ethernet) power supply range from 100 m to 1 km over a coaxial cable, including maintaining power supply for IEEE 802.3at devices at the end of the line.

The extender application is ideal for use in places where IP cameras or wireless access points are used at longer connection distances. Technically, it is an integrated extension of the ability to install powered devices in places further away from the central switch or rack.

BASIC SPECIFICATIONS

Features:

•

• LED operating status indication

• Range 200 ms PoE+, 600 ms PoE, 1600 m without PoE

• Coaxial transmission LRE (Long reach ethernet) according to IEEE 1901

• W-OFDM modulation

• AES-128 encryption

• Frequency spectrum 2 - 28 MHz


Physical properties:

Ports: 1 x RJ-45 10/100BASE-TX with PoE output 802.3at/af, 1 x BNC connector

Design: wall-mounted, DIN rail (requires bracket, not included)

Power supply: BNC PoC input 44-56V DC

Protection: ESD + EFT up to 2 KV DC

Operating temperature: -20 to 70°C, humidity 5 - 95%

Dimensions: 94 x 70 x 26 mm

Weight: 375g

POE function:

Typical application:

Possible uses:

PoE power supply:
