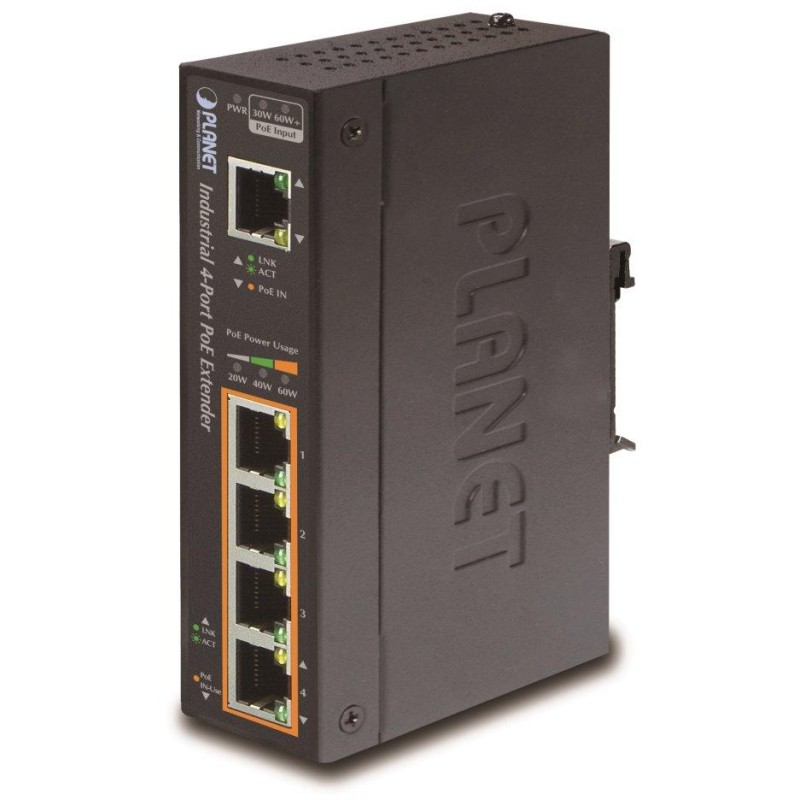

Planet industrial PoE/LAN extender, 1xPoE-in, 4xPoE-out 60W, 802.3bt/at/af, Gigabit, IP67, ESD+EFT, -40~75°C

PLANET IPOE-E174

Industrial extender with gigabit switch for power over Ethernet cable, IEEE 802.3at standard. 1x input power PoE port (60W) + 4x injectors; total load capacity 60W (2x 30W or 4x 12W). ESD+EFT protection, IP30 protection, aluminum housing, operating temperature -40 to 75°C, DIN rail or wall mounting.

BASIC SPECIFICATIONS

Physical properties:

Ports: 1 x RJ-45 10/100/1000BASE-T input with Ultra PoE, 4 x 10/100/1000BASE-T output with PoE

Memory: 2k MAC addresses, 1 Mb buffer

Throughput: 10 Gbps bus, operational 7.44 Mpps (64B)

Design: DIN rail, wall-mounted

Power supply: Ultra PoE port, power consumption up to 66.1 W (power supply not included)

Protection: ESD up to 6kV

Operating temperature: -40 to 75°C

Dimensions: 135 x 85 x 32 mm

Weight: 424g

POE function:

Industrial properties:

The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts

the device is vibration resistant (IEC-60068-2-6)

The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)

electrical safety according to CE EN-60950

EMC Electronic Compatibility (EMI):

ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment

EMC immunity requirements (EMS):

ČSN EN 55024 A1:2015 - Information technology equipment

ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment

ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD

ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields

ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT

ČSN EN 61000-4-5:2014 - Surge and overvoltage

ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields

ČSN EN 61000-4-8:2009 - Power frequency magnetic field

ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes

Usage examples:
