Planet POE-175-95 Ultra PoE injector 802.3af/at/bt, up to 95W, PoH, 1000Base-T, internal power supply

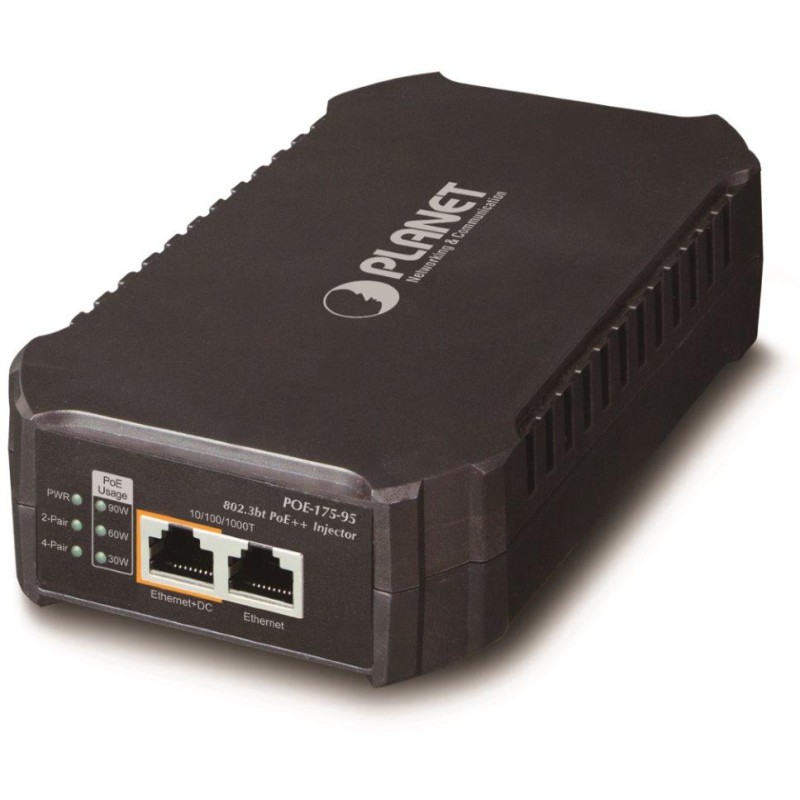

PLANET POE-175-95

PoE injector with high power up to 95 W according to the 802.3bt specification. It is designed specifically for the increasing power consumption requirements of devices such as PTZ cameras, all-in-one computers, or other network devices requiring sufficient power supply.

The POE-175-95 transmits data and 54V DC electrical power over twisted pair cables, as a 95-watt PoE injector and the attached Ultra Power over Ethernet hub, POE-172S, separates digital data and power into three selectable outputs (12V/19V/24V DC) with a distance of up to 100 meters.

In case the devices do not fully comply with IEEE 802.3af/at/bt standards, the injector can be easily switched to compatible mode, which is indicated by the LEDs present. Another LED indicates the currently used PoE power of the injector.

BASIC SPECIFICATIONS

Interface: 2x RJ-45 10/100/1000 Mbps: 1x Data input, 1x PoE (Data + Power) output

Total power output: up to 95 W, IEEE 802.3at, IEEE 802.3bt

Port load capacity: up to 95 W

Power supply: 100-240V AC, 50/60Hz

Operating temperature: 0 to 50 °C

Dimensions: 170 × 100 × 40 mm

Weight: 480g

Detail of the indicator LEDs:

Usage examples:
