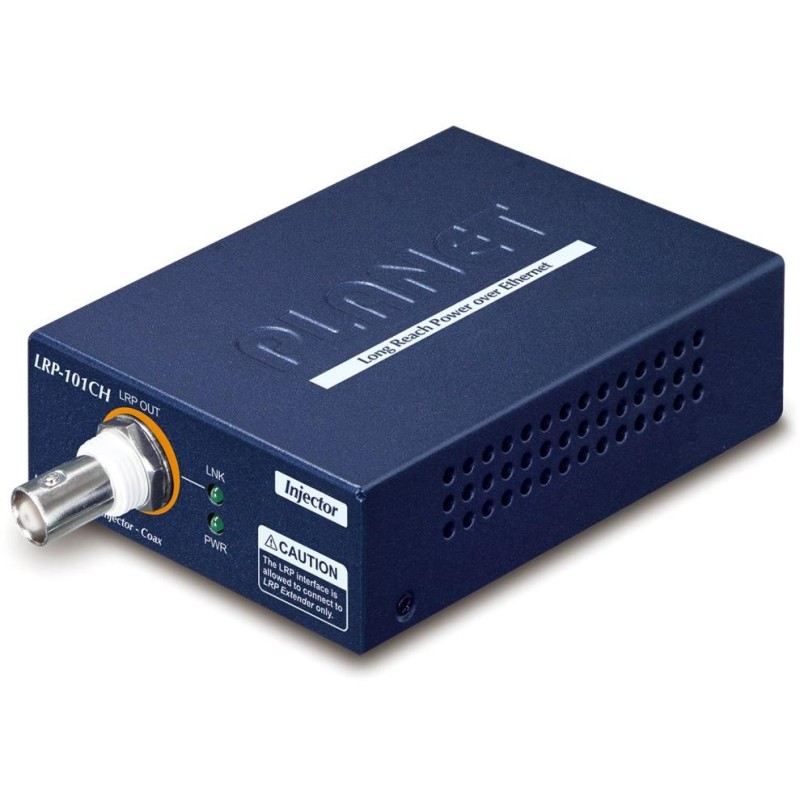

Planet LRP-101CH, COAX PoE extender, master, 10/100Base-TX, PoE 802.3at-30W, EFT+ESD, range 1km, -20 to 70°C

PLANET LRP-101CH

PoE Ethernet extender to extend an Ethernet segment from 100 m to a distance of up to 1 km (1.2 km without PoE) over coaxial cable, including support for PoE power supply IEEE 802.3at/af .

Long Reach Ethernet (LRE) IEEE 1901 , LED indication, ESD+EFT protection, DC or PoE power supply (802.3at/af), operation at -20 to +70 °C .

The extender application is ideal for use in places where IP cameras or wireless access points are used at longer connection distances. Technically, it is an integrated extension of the ability to install powered devices in places further away from the central switch or rack.

BASIC SPECIFICATIONS

Features:

•

• LED operating status indication

• Range 200ms PoE+, 1000ms PoE, 1200m without PoE

• Coaxial transmission LRE (Long Reach Ethernet) according to IEEE 1901

• W-OFDM modulation (Wavelet-OFDM)

• AES-128 encryption

• Frequency spectrum 2-28 MHz


Physical properties:

Ports: 1x RJ-45 10/100Base-TX with PoE input 802.3at/af, 1x BNC connector

Design: wall-mounted, DIN rail (requires bracket, not included)

Power supply: PoE 802.3af/at DC 48-56 V or DC 48-56 V adapter (not included)

Protection: ESD (up to 4 kV DC) + EFT (up to 2 kV)

Operating temperature: -20 to +70 °C, humidity 5-95%

Dimensions: 94 x 70 x 26 mm

Weight: 200g

PoE function:

Typical application :

Possible uses:
