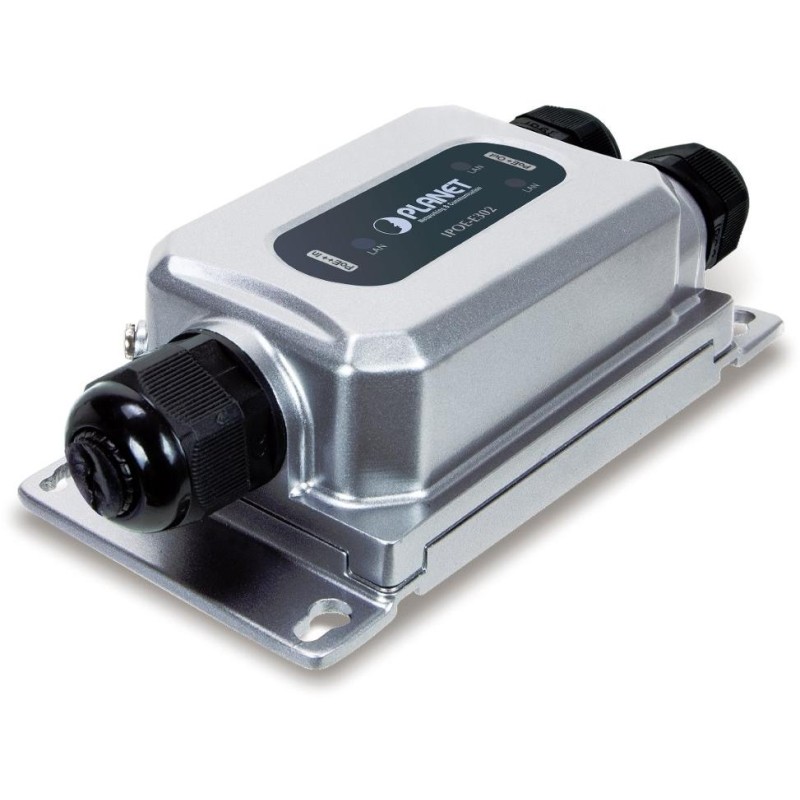

PLANET IPOE-E302
Industrial PoE++ extender for extending Ethernet 10/100/1000Base-T segment to 200 m, IEEE 802.3bt/at power support, PoE budget 65 W, extender version v2 (PoE output extension to 802.3bt)
1x 802.3bt power port (PoE++ 95 W, 50-57 V), 2x 802.3bt/at power output port (65 W/port, max. 65 W, 48-55 V), aluminum housing with IP67 and IK10 certification, EFT and ESD protection, 3x LED indicator, wall mounting option, operating temperature -40 to +75 °C .
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 10/100/1000Base-T (802.3bt PoE++), 2x RJ-45 10/100/1000Base-T (802.3bt PoE++), output: 1x type 4 PD standard, 1x type 3 PSE standard
Memory: 2k MAC addresses, 1 Mb buffer
Throughput: 6 Gbps bus, operational 4.46 Mpps
Transmission support: JumboFrame 9 KB
Design: wall-mounted
Power supply: PoH (Power over HDBase-T) or IEEE 802.3at/bt at the extender input, total power consumption up to 95 W (power supply not included)
Protection: ESD up to 6 kV contact and up to 8 kV air, EFT up to 6 kV
Operating temperature: -40 to +75 °C
Dimensions: 150 x 72.94 x 43.8 mm
Weight: 339 g (372 g with caps)
PoE function:
Total power output: 65 W, 802.3af, 802.3at, IEEE 802.3bt
Number of injectors: 1x up to 65 W, 2x up to 30 W
Power supply type: end-span/mid-span (for PoE input)
Advanced features:
- automatic detection of powered device
- PoE range extension to 200 meters
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
possibility of mobile installation according to CE EN50155
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by high-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
