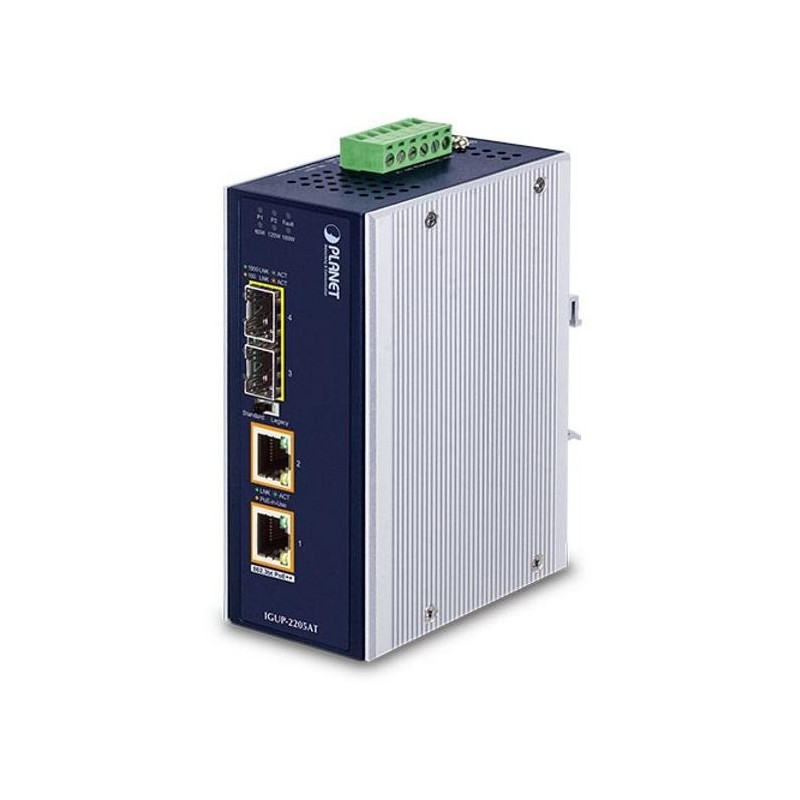

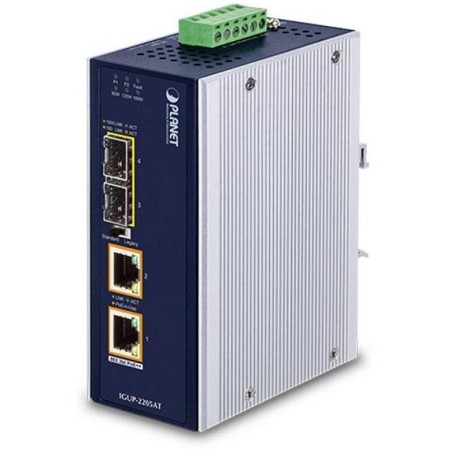

PLANET IGUP-2205AT
Ethernet converter 1000Base-T with PoE injector IEEE 802.3bt to two optical ports 1000BASE-SX/LX/BX SPF for installation in industrial environments.
Redundant power supply option in the range of 12-56 V DC, IP30 protection, aluminum housing, extended operating temperature -40~75°C.
ESD protection up to 6 kV DC. DIN rail or wall mounting.
Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).
BASIC SPECIFICATIONS
Physical properties:
Ports: 2 x RJ-45 10/100/1000Base-T, 2 x SFP 1000BASE-SX/LX/BX
Transmission support: Frame 9K
Design: DIN rail, wall-mounted
OAM support: no
Power supply: 12-56V DC power supply, total power consumption up to 5.28 W (up to 205 W at maximum PoE load, power supply not included)
Protection: ESD up to 6 KV DC, reverse polarity protection
Operating temperature: -40 to 75°C
Dimensions: 135 x 85 x 55 mm
Weight: 665g
Can be installed in a chassis: no
POE function:
Total power output: IEEE 802.3bt
Number of injectors: 1 x up to 180 W
Power supply type: End-span, Mid-span
Advanced features:
automatic detection of powered device
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mounting :
Wall mounting using the supplied frame>:
