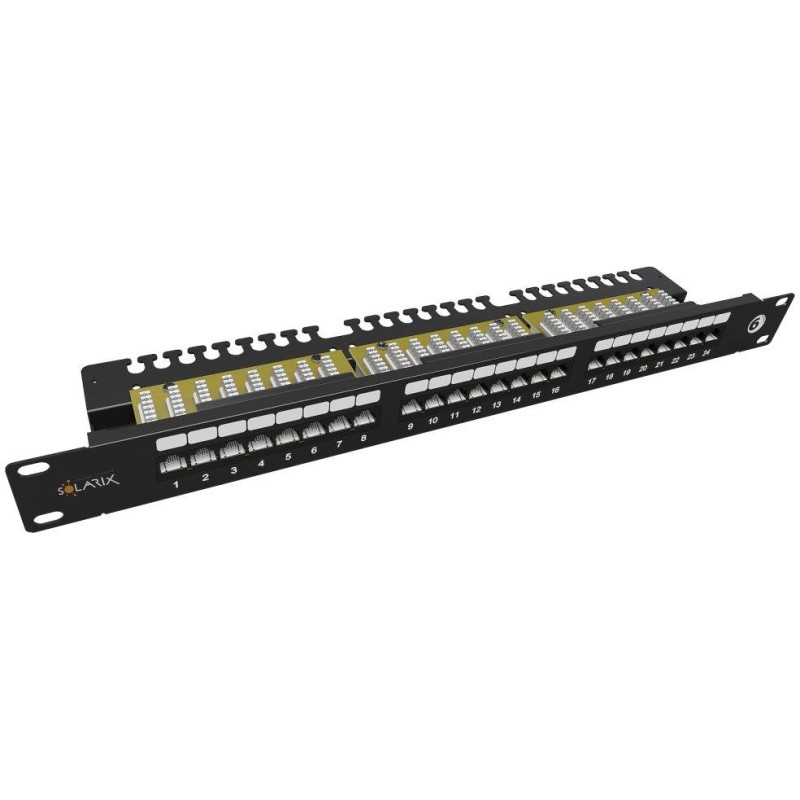

Solarix Patch panel 24x RJ-45 Cat6 UTP with binding strip 1U SX24L-6-UTP-BK-N

Solarix SX24L-6-UTP-BK-N

Unshielded Cat6 patch panel 24 ports with tie-bar.

The Solarix SX24L-6-UTP-BK-N patch panel is a 19" unshielded Cat6 panel equipped with 24 RJ-45 ports . The body of this panel includes a tie-down rail , which serves to firmly secure the cables. The installation cable on this panel terminates in a dual IDC terminal block of type 110/Krone - i.e. both a 110 and Krone tool can be used for cutting. The panel's terminal block is marked according to the T568A and T568B standards. Like all other components of Solarix structured cabling, this panel is manufactured to provide very good functionality and high reliability.

This patch panel meets the requirements for Category 6 components and Class E wiring classes as defined in ANSI/TIA 568, ISO/IEC 11801 and EN 50173, including all the latest amendments. The color of the patch panel is black; the size in the data cabinet is 1U . The package includes 4x M6 mounting kit, and 24x tie-down straps . This new Solarix patch panel replaces the panel with the designation SX24L-6-UTP-BK.

•

• Supported protocols: 2.5/5G Base-T and lower

• Min. port life: 1000 connection/disconnections

• Contact plating: 50 µ gold

• Terminal block: dual 110/Krone 8p8c

• Min. terminal block life: 200 cuts

• Wire size and type: AWG 26 - 22, wire

• Material of non-metallic parts: FR plastic according to UL94-0


BASIC SPECIFICATIONS

Compatibility: 19" rack

Number of positions: 24

Height: 1U

Shielding: no

Color: black
