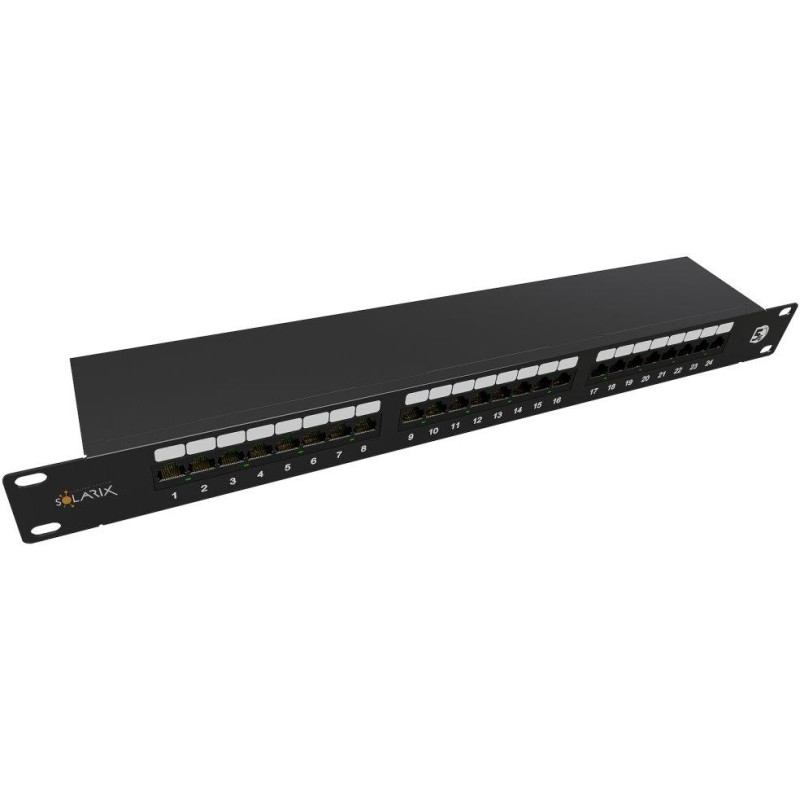

Solarix Patch panel 24 x RJ45 CAT5E STP black 1U SX24-5E-STP-BK-N

Solarix SX24-5E-STP-BK-N

Shielded Cat5e 24-port patch panel with tie-bar.

The Solarix SX24-5E-STP-BK-N patch panel is a panel equipped with 24 RJ-45 ports , which includes a tie-down rail for clear tie-down and firm attachment of cables directly to the panel body. The installation cable is terminated in a dual IDC terminal block of the 110/Krone type. The terminal block is marked according to the T568A and T568B standards for easy cable termination. Like all other components of the Solarix structured cabling, this panel is manufactured to guarantee maximum durability, very good functionality and high reliability.

This patch panel meets the requirements for Category 5E components and Class D wiring classes as defined in ANSI/TIA 568, ISO/IEC 11801 and EN 50173, including all the latest amendments. The color of the patch panel is black; the size in the data distribution cabinet is 1U . The package includes 4x M6 mounting kit, and 24 x tie-down straps . This new Solarix patch panel replaces the panel with the designation SX24-5E-STP-BK.

•

• Supported protocols: 2.5/5G Base-T and lower

• Min. port life: 1000 connection/disconnections

• Contact plating: 50 µ gold

• Terminal block: dual 110/Krone 8p8c

• Min. terminal block life: 200 cuts

• Wire size and type: AWG 26 - 22, wire

• Material of non-metallic parts: FR plastic according to UL94-0


BASIC SPECIFICATIONS

Compatibility: 19" rack

Number of positions: 24

Height: 1U

Shielding: yes

Color: black
