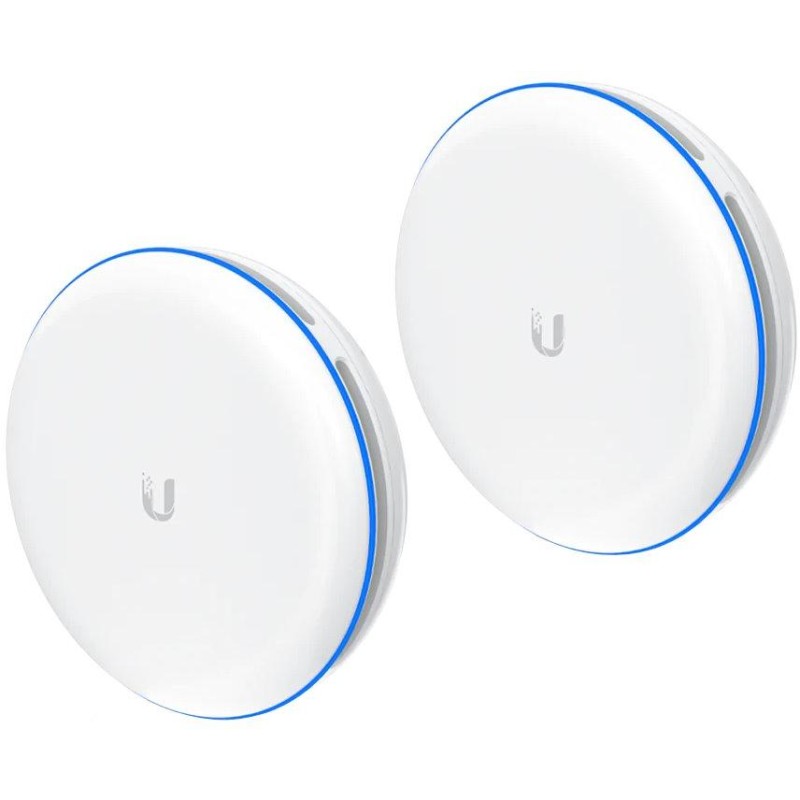

Ubiquiti UniFi UBB XG
UniFi UBB (Building-to-Building Bridge) XG is a Point-to-Point bridge from the UniFi series with a data throughput of 6 Gbps , operating in the 60 GHz band with a 5 GHz backup . The complete link is particularly suitable for shorter distance hops ( up to 500 m ), for example between buildings.
The UniFi UBB XG features an LED indicator system that allows you to easily adjust its angle and position to optimize signal transmission. Other features include Bluetooth management , a 10-gigabit SFP+ slot, and a robust steel bracket for precise alignment.
With seamless integration with the UniFi Network app (version 6.3 and later), the UBB XG can be set up in minutes and managed from a central, intuitive interface, making network bridging easier than ever.
Package contents:
2x UniFi Building Bridge XG
2x bracket with precise alignment (per pole)
2x PoE (48 V/ 0.65 A) adapter
2x power cable
BASIC SPECIFICATIONS
Frequency band: 60 GHz (operational 57-66 GHz), 5 GHz reserve
Transmission speed: 6 Gbps (866.6 Mbps in the backup 5 GHz band)
Ports: 1x GbE RJ-45, 1x 1/10G SFP+ slot
Antenna gain: 22 dBi (14 dBi for 5GHz antenna)
Radio power (TX): 33 dBm
PoE support: yes, 802.3bt or passive 48V (±10%)
Weather resistance: IPX6
Dimensions: 191.8 x 191.8 x 59 mm
Weight: 1.7 kg (2.9 kg with holder)
The operation of the 60GHz link in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link depends on local regulations in the given country and local conditions.
Manual (assembly instructions):
https://dl.ui.com/qig/ubb-xg
Datasheet:
https://dl.ui.com/ds/ubb-xg_ds.pdf
