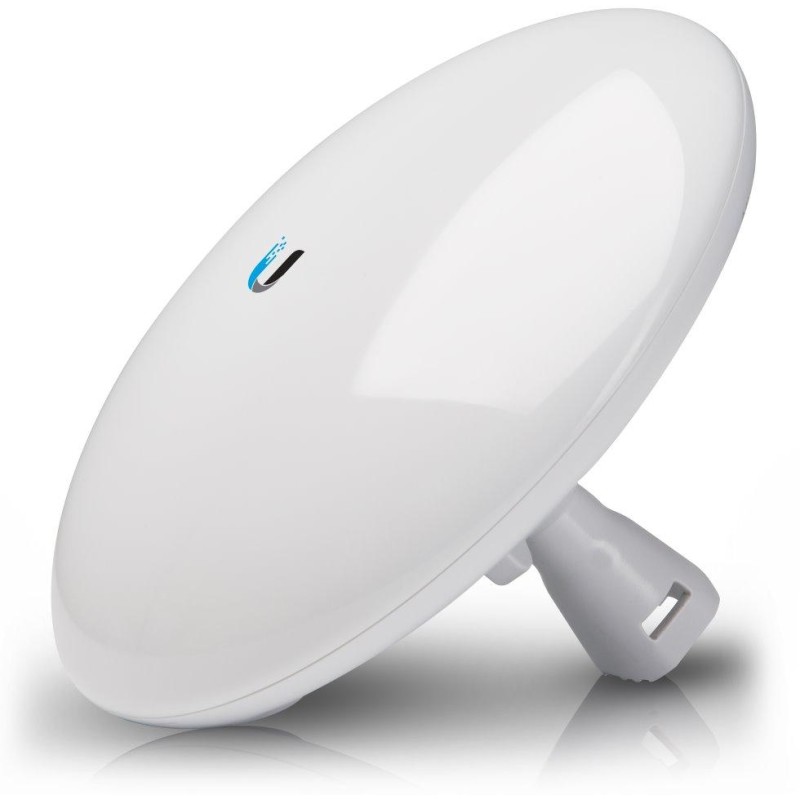

Ubiquiti NanoBeam 5 AC Gen2
NanoBeam (NBE-5AC-Gen2) is a complete second generation outdoor unit with 19 dBi MIMO 2x2 antennas for the 5 GHz band suitable as a client unit. NanoBeam supports the 802.11ac standard, thanks to which it achieves a throughput of 450+ Mbps.
NanoBeam 5AC-Gen2 is the second generation of airMAX AC devices that have a dedicated radio for wireless access to the unit and the ability to configure in the UNMS application for mobile devices . The UNMS application ( Android , iOS ) also helps with the alignment of the connection and significantly speeds up its installation.
The compact NanoBeam unit provides maximum performance in minimal dimensions while maintaining a low price. The antenna system consists of two 19 dBi antennas (MIMO) with linear horizontal and vertical polarization.
The NanoBeam 5AC-Gen2 has improved surge protection that protects the device against electrostatic discharge.
For high transfer speeds, the unit uses the 802.11ac standard and AirMAX (TDMA) technology to achieve low latencies .
Web administration is very simple and clear . You can set, for example:
- AP, client or WDS mode
- traffic shaping
- Quality of Service
- between WAN and LAN transparent bridge or routing, without NAT or with NAT
- the signal strength that a specific signaling LED should correspond to
- output power up to 25 dBm
NanoBeam AC Gen2 has two RJ45 Gigabit Ethernet ports . The second port can be used to power another device (requires a more powerful 24V/1A PoE injector ) that supports 24V PoE.
The package includes a 24 V/0.5 A Gbit PoE power injector .
BASIC SPECIFICATIONS
Transfer speed: up to 450 Mbps
Connector: 2x RJ-45
Power supply: 24V, 0.5A Gigabit (passive PoE)
Gain: 19 dBi
Frequency: 2412 - 2472 MHz, 5150 - 5875 MHz
Dimensions: 189 x 189 x 125 mm
Weight: 530g
Important notice:
The airOS system is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by weather radars, i.e. 5630 and 5645 MHz.
