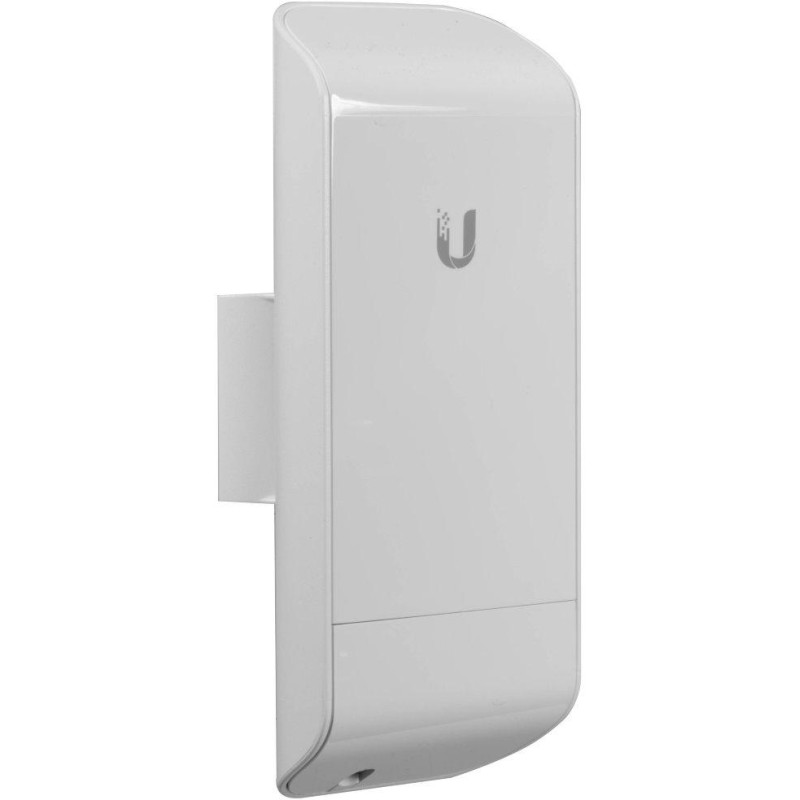

Ubiquiti NanoStation LocoM5
NanoStation (LOCOM5) is a scaled-down copy of the popular NanoStation M5 at an incredible price with speeds up to 150 Mbps. Thanks to its small size, it fits practically anywhere. Compared to the Nanostation M5, it differs in dimensions, 1x LAN and an integrated MIMO 2×2 13dBi antenna.
Another advantage, in addition to the high transmission speed thanks to the 802.11n standard, is the use of TDMA time division multiplexing, which allows more than 300 clients to be connected to the unit in AP mode and low latency.
The web administration is very simple and clear. You can set, for example:
- AP, client or WDS mode
- traffic shaping
- Quality of Service
- between WAN and LAN transparent bridge or routing, without NAT or with NAT
- the signal strength that a specific signaling LED should correspond to
In bridge and WDS mode, the device supports IPv6 transmissions transparently.
The package includes a PoE injector 24V/0.5A.
The package includes installation tapes that are exposed to mechanical stress. We recommend replacing the tapes with new ones every 2 years. This will prevent possible damage to the device.
BASIC SPECIFICATIONS
Wi-Fi standard: IEEE 802.11a/n
CPU frequency: 560 MHz
Number of cores: 1
RAM memory: 64 MB
Ports: 1 x RJ-45
PoE support: yes
Frequency band: 5170 - 5875 MHz
Antenna: 2 x 13 dBi internal
Dimensions: 161 x 80 x 31 mm
Weight: 180g
Important notice:
The airOS system is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by weather radars, i.e. 5630 and 5645 MHz.
