TINYCONTROL mains voltage sensor on DIN rail for LK3 & LK4

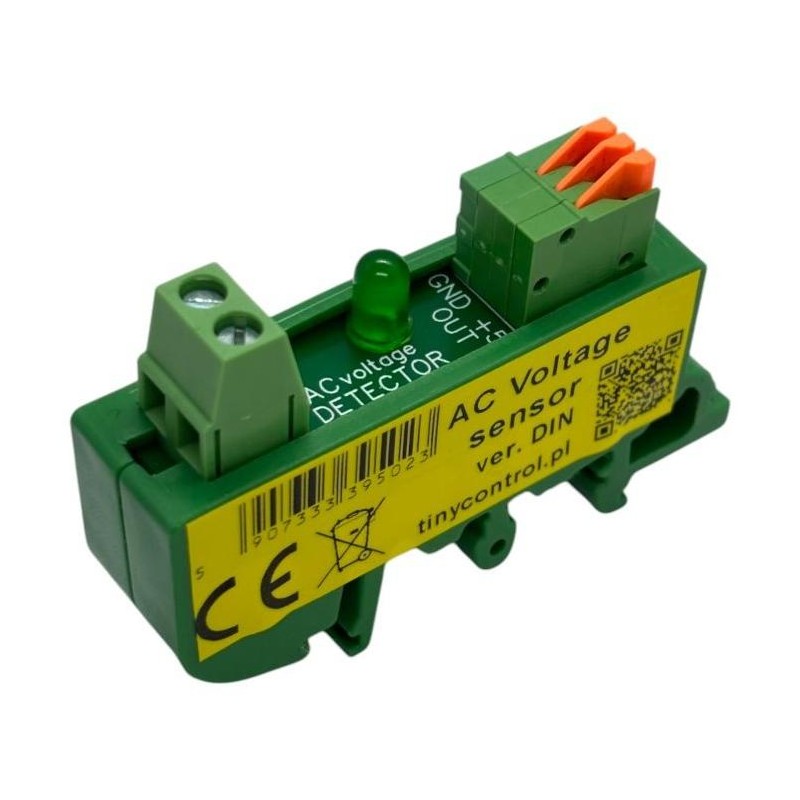

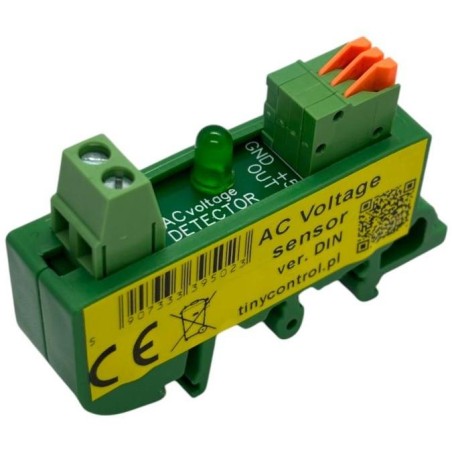

Tinycontrol AC SENSOR ver. DIN

Sensor designed for mounting in an electrical cabinet on a DIN rail . It indicates in a simple way the availability of 230 V mains voltage. It is particularly useful in all installations with UPS. The optical measuring method guarantees galvanic isolation between the 230 V supply voltage and the information output.

It uses a logic type output (terminal INPD, for connection to input INPD/iD on tcPDU/LK).

•

• Current supply 230 V - low state 0, approx. 0.1 V

• No 230 V supply - high state 1 approx. 2.4 V


BASIC SPECIFICATIONS

Current consumption: 1 mA at AC 230 V

Operating voltage: AC 230 V

Terminals: +5V, GND, INPD

Color: green
