TINYCONTROL temperature sensor DS18B20U for LAN controller

Tinycontrol DS18B20U

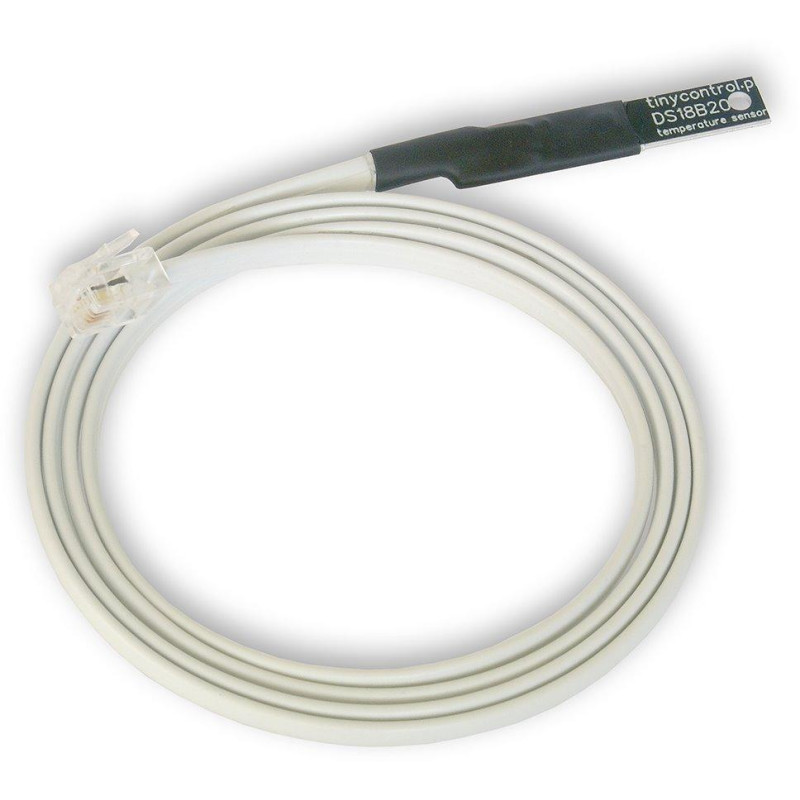

Digital temperature sensor with 1.05 m cable terminated with RJ-11 connector for connection to a LAN controller or splitter. Each sensor is programmed with a serial identification number, which allows multiple sensors to be read on one bus.

•

• Programmable sensor accuracy: 9-12 bits

• Power supply: 2.5 to 5.5 V DC

• ESD protection: >8000 V

• Typical standby current consumption: 1 uA @ 3 V

• Typical conversion current consumption: 0.6 mA @ 3 V


BASIC SPECIFICATIONS

Measurement range: -55 to +125 °C

Accuracy: +/- 0.4 °C (at a temperature of -10 to +85 °C)

Cable length: 105 cm

You can find the method of connecting the sensor to the LAN controller v3 in the manual .
