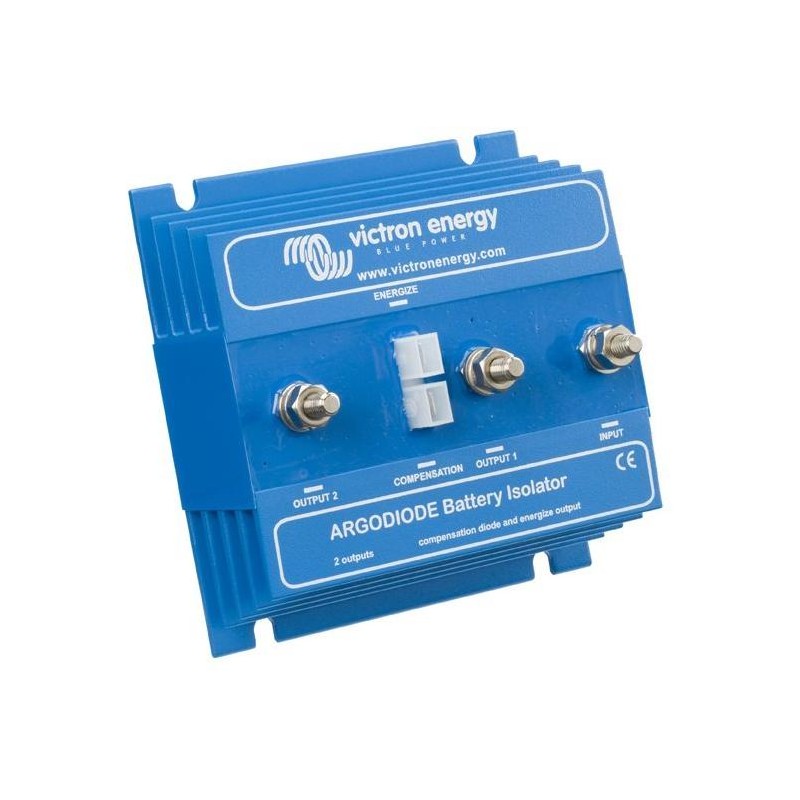

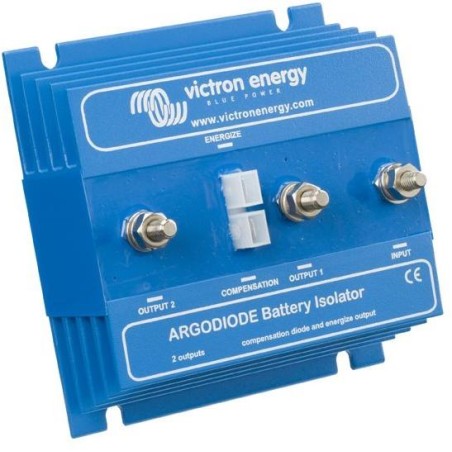

Victron Argodiode 80-2AC, 2 batteries 80A

Victron Argodiode 80-2AC

Argodiode battery isolator

Argon diode battery separators allow two or more batteries to be charged simultaneously from one alternator, without the batteries being connected to each other . For example, discharging the main or auxiliary battery will not cause the starter battery to be discharged. The separators have a low voltage drop due to the use of high-quality Schottky diodes. At low current, the voltage drop is approximately 0.3 V and at nominal current approximately 0.45 V.

All models are equipped with a compensation diode that can slightly increase the alternator output voltage. This compensates for the voltage drop across the diodes in the insulator.

BASIC SPECIFICATIONS

Max charging current: 80 A

Max. alternator current: 80 A

Number of batteries: 2

Alternator power input: yes

Connection type: 6 mm bolt with nut (M6)

Compensation diode and power connection: Faston 6.3 mm

Weight: 0.6 kg

Dimensions: 120 x 90 x 60 mm
