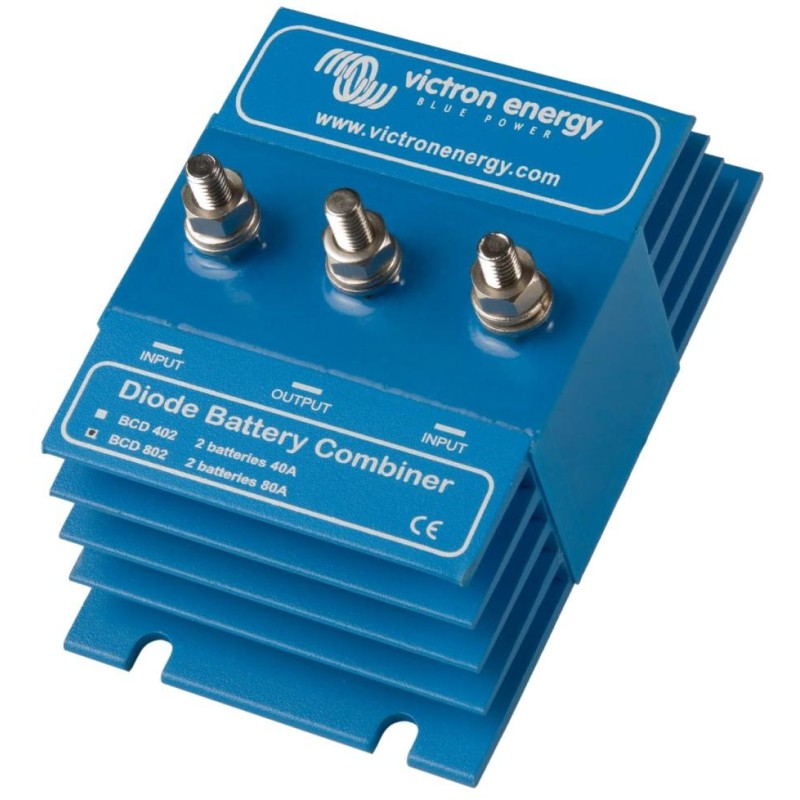

Victron ARGO BCD 802 diode bridge

Victron Argo BCD 802 diode bridge

Diode connector for parallel connection of batteries and power supply of common appliances, maximum current 80 A, for 2 batteries and 12/24 V systems .

These battery linkers provide uninterrupted DC power to critical applications such as electronic motor control systems. A diode battery linker connects two or more DC power supplies in parallel to power a critical load. If one of the power supplies fails, the critical load will not be interrupted.

ARGO diode connectors enable parallel connection of two batteries to power a common appliance. Using the connector eliminates the risk of unwanted mutual self-discharge of the connected batteries due to unidirectional current flow. The built-in Schottky rectifier diodes have a very small voltage drop. At low current the drop is approximately 0.3 V, at higher consumption a maximum of 0.45 V.

Warning: Mount the Argo diode battery combiner/connector only on a non-flammable surface and in a non-flammable location!

BASIC SPECIFICATIONS

Max. continuous current: 80 A

Number of batteries: 2

Connection type: 6 mm bolt with nut (M6)

Weight: 0.8 kg

Dimensions: 120 x 75 x 60 mm
