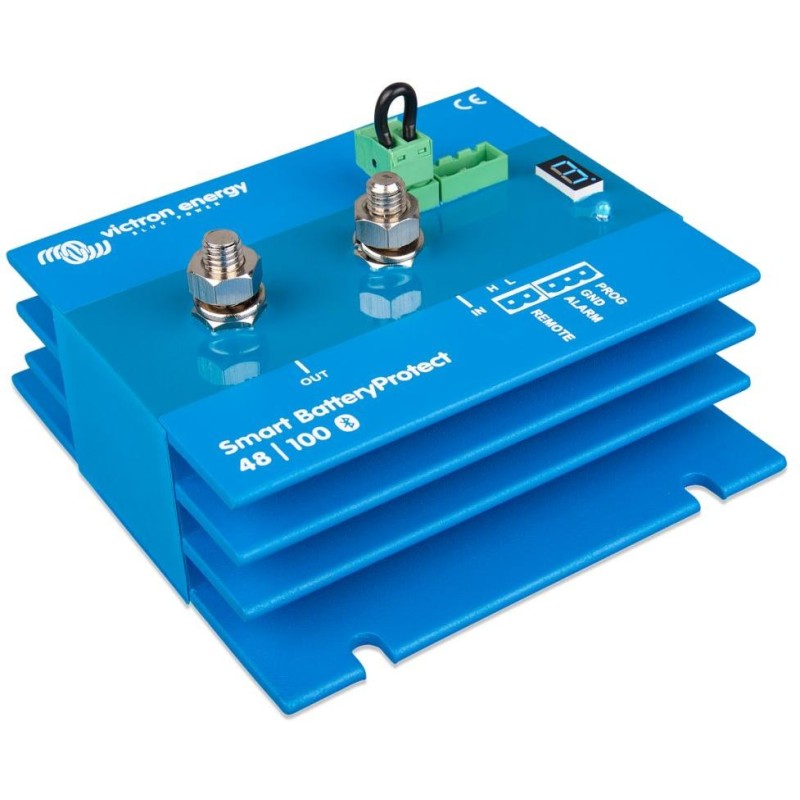

Victron BP-100 Smart, battery protection, 48V-100A, Bluetooth

Victron Smart BatteryProtect BP-100 Battery protection Smart BatteryProtect protects the battery against overdischarge (which could damage the battery) and can be used as an on/off system switch. Consumer disconnector as protection against deep battery discharge Maximum load current 100 A Integrated Bluetooth module for easy setup Integrated Bluetooth = very easy programming Thanks to the integrated Bluetooth function for programming Smart BatteryProtect, the desired voltage levels for connecting/disconnecting the load can be easily set. You can make the settings via Smartphone, tablet or PC using the VictronConnect app. Alternatively, one of nine preset connection/disconnection levels can be set using the programming pin (see manual). If necessary, Bluetooth can be switched off. Special settings for Li-ion batteries In this mode, Smart BatteryProtect can be controlled via the VE.Bus BMS. Note: Smart BatteryProtect can also be used as a charging disconnector between the battery charger and the Li-ion battery. See wiring diagram in the manual. Very low power consumption Low power consumption is very important for Li-ion batteries, especially after low voltage shutdown. For more information, please see the technical data for Li-ion batteries and the VE.Bus BMS user manual. Overvoltage protection In the event of an overvoltage that could damage sensitive devices, the devices are disconnected if the DC voltage exceeds 64 V. Spark-proof Does not work with relay elements, but with MOSFET transistor switches, so there is no sparking. Delayed alarm output The alarm output is activated if the battery voltage drops below the set value for more than 12 seconds. Starting the engine therefore does not activate the alarm. The alarm output is an open collector output on the negative bus, max. current 500 mA. This alarm output is typically connected to a buzzer or light. Delayed load disconnection The load is disconnected 90 seconds after the alarm has been triggered. If during this time the battery voltage rises to the “connection threshold” level (e.g. during engine starting), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased above the preset reconnection voltage. BatteryProtect battery protection is unidirectional, i.e. current can only flow from the “in” input to the “out” output. Reverse current flowing from the “out” output to the “in” input is not permissible and will damage the device. BASIC SPECIFICATIONS Nominal voltage: 48 V Voltage range: 24–70 V Maximum continuous load current*: 100 A Peak current (for 30 seconds): 250 A Threshold voltage (disconnect): 42 V Threshold voltage (connect): 48 V Operating temperature: -40 to +40 °C IP protection degree: electronics IP67, connections: IP00 Connection (thread): M8 Dimensions: 123 x 120 x 62 mm Weight: 0.8 kg *BatteryProtect battery protection is not intended for reverse current from charging sources! Basic wiring diagram: VictronConnect application for Android mobile devices VictronConnect application for iOS mobile devices VictronConnect application for Mac devices The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android): https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
