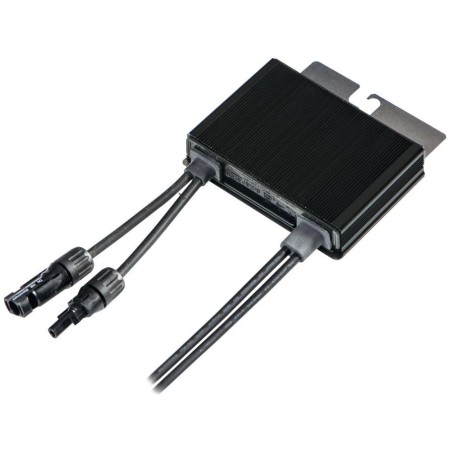

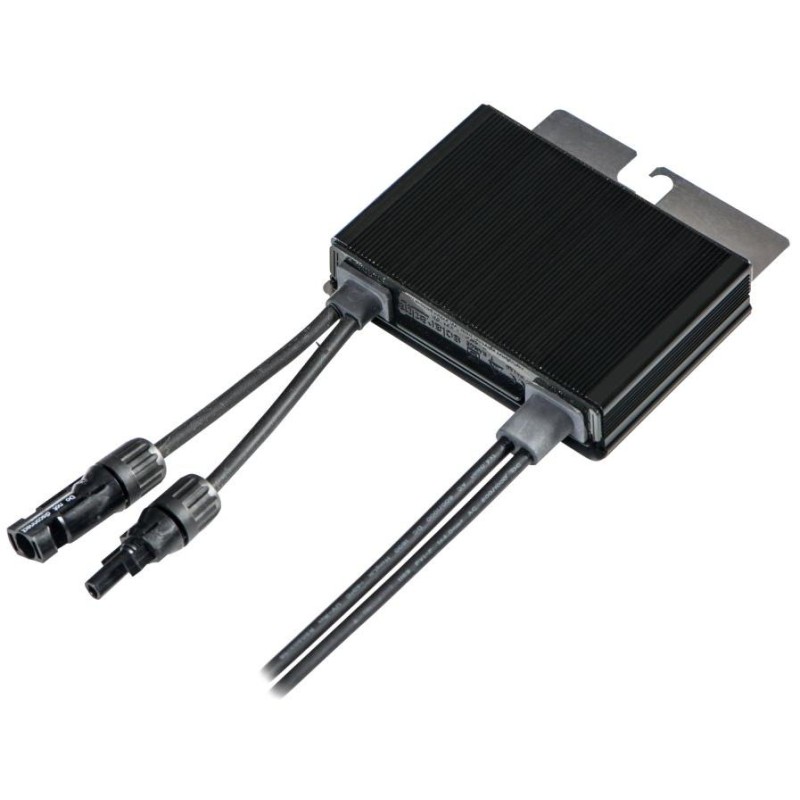

SolarEdge S440-1GM4MRM Optimizer / panels up to 440W / MPPT 8-60V

SolarEdge S440-1GM4MRM SolarEdge S440 power optimizer for solar panels up to 440 W. Optimizers help you get the most out of your SolarEdge photovoltaic system. Benefits of SolarEdge optimizers: Maximum power at the panel level The entire string is not affected by shading Continuous MPP tracking Monitoring is possible on a panel-by-panel basis Higher power in shading and different orientations Panels of different power classes can be combined without loss Detects abnormal behavior of photovoltaic connectors, prevents possible safety problems Features of S440 optimizers: MPPT operating range 8-60 V Panels up to 440 W 14.5 A max. short-circuit current Easy installation thanks to MC4 connection 0.1 m input cable 2.3 m output cable SafeDC function automatically reduces voltage to 1 V per panel in case of fault Easy mounting on substructure using hammerhead screw Compatible with all SolarEdge inverters Mixing of S and P series power optimizers is not permitted in new installations Min. 8 optimizers per string for single-phase inverters Min. 16 optimizers per string for three-phase inverters Min. 18 optimizers per string for three-phase inverters and 277/480 V grid Power losses of the entire string due to shading or different orientation are a thing of the past with SolarEdge power optimizers. Thanks to MPP tracking at the panel level, each panel is controlled individually, allowing the string to deliver the maximum available power. The S440 optimizers are easy to install and can be used to realize maximum power. BASIC SPECIFICATIONS Nominal DC input power: 440 W Absolute value of max. input voltage (Voc) 60 V MPPT operating range: 8-60 V Maximum short-circuit current (Isc) of the connected PV panel: 14.5 A Input and output connectors: MC4 Efficiency: 98.6% (max. 99.5%) Dimensions: 153 x 129 x 30 mm Weight: 655 g
