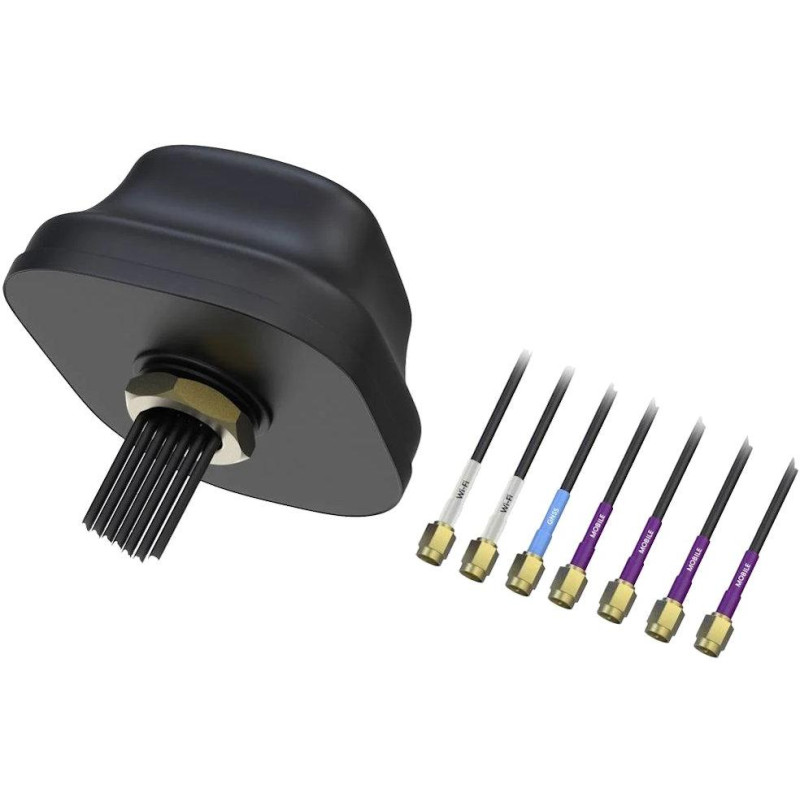

Teltonika PR1KC640 antenna 5G COMBO MIMO Mobile/GNSS/WIFI ROOF SMA

Universal roof antenna combining 5G mobile communication, GNSS navigation and Wi-Fi connection in one compact solution.

This antenna represents a comprehensive communication solution for mobile applications, vehicles and industrial installations. It integrates a 5G MIMO antenna covering the frequency bands 617-960 MHz, 1710-2690 MHz and 2900-4200 MHz, an active GNSS antenna with a built-in amplifier and a Wi-Fi MIMO antenna for the 2.4 GHz and 5 GHz bands.

The robust construction of UV-resistant ABS/PC plastic with IP67 protection ensures reliable operation in harsh conditions at temperatures from -40 °C to +85 °C . The antenna is designed for easy installation using a screw mount in a 28 mm diameter hole.

5G mobile MIMO antenna
Four SMA (M) connectors provide MIMO connections with linear polarization and 50 Ω impedance. VSWR ≤ 3.0 guarantees optimal signal transmission over a wide frequency spectrum.

Active GNSS antenna
The built-in low-noise amplifier with 3-12 V DC power supply and consumption up to 60 mA provides reliable reception of satellite signals. RHCP polarization and VSWR ≤ 2.0 ensure accurate navigation.

Wi-Fi MIMO system
Two RP-SMA (M) connectors for 2.4 GHz and 5 GHz Wi-Fi bands with linear polarization and 4.0 dBi gain. VSWR ≤ 2.5 optimizes wireless performance.

BASIC SPECIFICATIONS

5G frequency: 617–960 / 1710–2690 / 2900–4200 MHz

GNSS frequency: 1164-1300 / 1559-1610 MHz

Wi-Fi frequency: 2400 2483.5 / 4900–5925 MHz

Gain: 4.0 dBi (5G and Wi-Fi), 40 ± 2 dB (GNSS LNA)

Connectors: 4× SMA (M; 5G), 1× SMA (M; GNSS), 2× RP-SMA (M; Wi-Fi)

GNSS power supply: 3–12 V DC, 60 mA consumption

Protection: IP67 (except cable outlet)

Dimensions: 189 × 182 × 85 mm

Weight: 960 ± 30g

Operating temperature: -40 to +85 °C

Cabling: 7× LMR100, length 300 cm

Mounting: 28 mm hole, max. panel thickness 8 mm
