EPEVER MT91 external display for iPower inverters

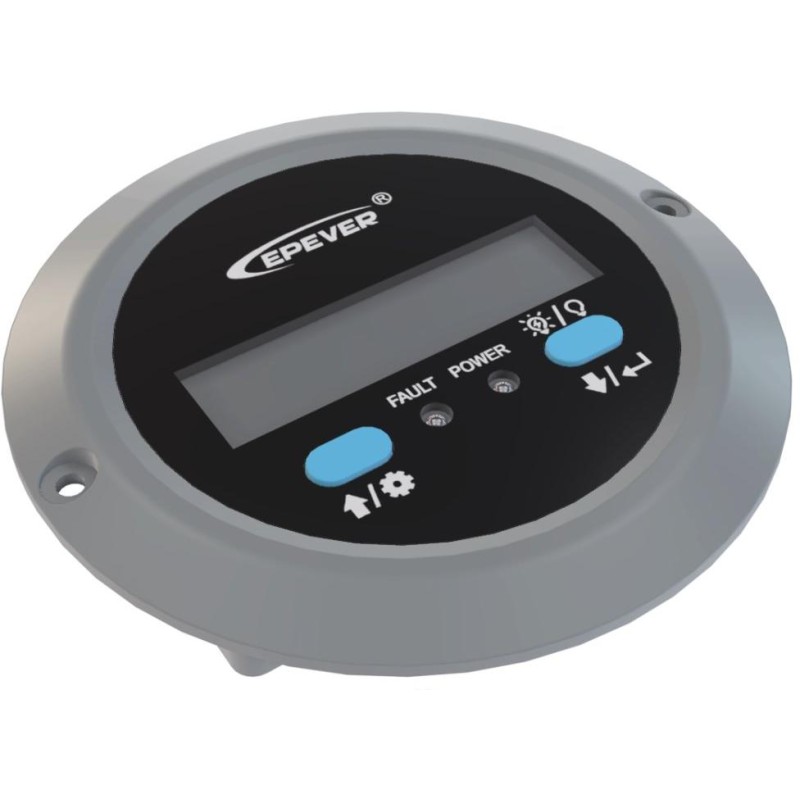

EPEVER MT-91

MT series external display is an accessory that is compatible with NPower and IPower Plus series voltage inverters . This new generation of remote controller allows you to monitor inverter parameters and alarms in real time. It supports parameter configuration through button operations, making the product suitable for various requirements.

Function:

•

• Dual interface design, easy connection with EPEVER inverter and other optional modules.

• LCD display, dynamic display of system data in real time.

• Visual display of error codes, timely notification of warnings/faults and the ability to set parameters.

• Load on/off button for direct control of load output.

• Easy installation and user-friendly operation.

• Communication cable included (CC-RJ45 3.81-100U).


BASIC SPECIFICATIONS

Display: LCD, backlit, monochrome

Interface: RS-485

Supply voltage: DC 5 V (via communication port)

Self-consumption: 14 mA (without backlight), 23 mA (with backlight)

Operating temperature: –20°C to +60°C

Dimensions: 100 × 100 × 19.4 mm (mounting height 50 mm)

Weight: 65g
