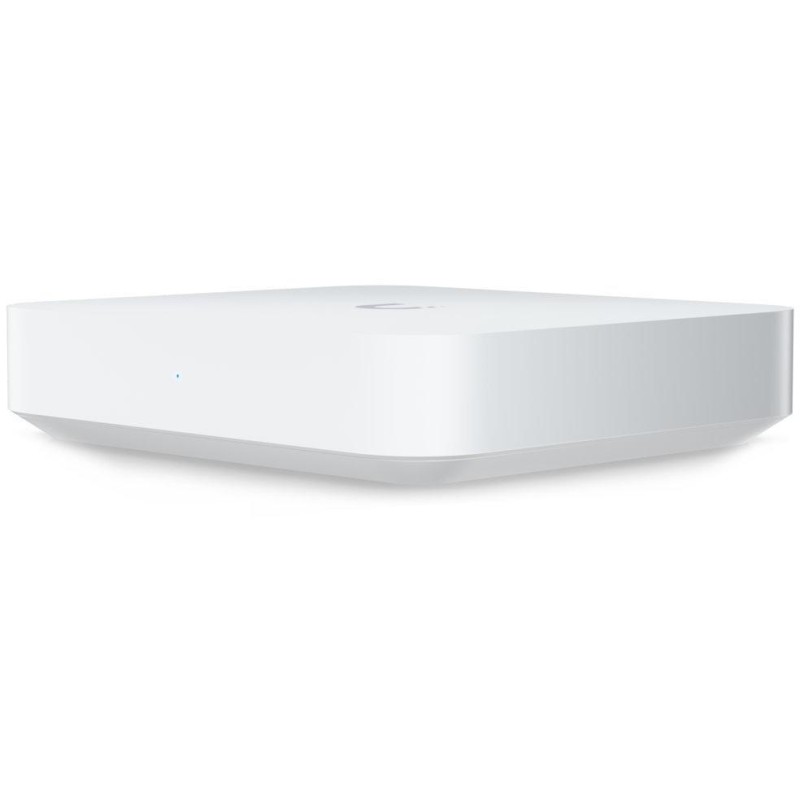

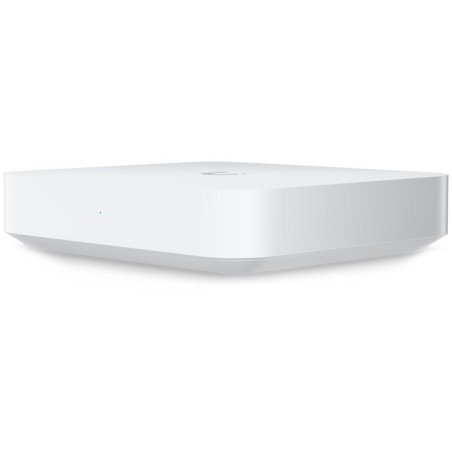

Ubiquiti UniFi Gateway Max
Powerful and compact UniFi Cloud multi-WAN gateway with a full set of advanced routing and security features. Runs on the UniFi Network for comprehensive network management.
The UniFi Cloud Gateway Max is equipped with one WAN port (2.5 GbE RJ-45) and four LAN (2.5 GbE RJ-45) ports, providing the high-speed connectivity needed to support most bandwidth-intensive applications. It also stands out as a compact network security solution that offers a complete set of threat mitigation features , including intrusion detection and prevention systems (IDS/IPS), content filtering, and VLAN-based traffic segmentation. To manage and utilize all configuration options, UniFi UXG routers must be adapted to the UniFi Cloud Key Gen2/Gen2 Plus console, UniFi Cloud Key Enterprise , or UniFi Network Server software, which can be downloaded from the official Ubiquiti download website.
Features and benefits:
- Quad-Core ARM Cortex-A53 (1.5 GHz), 2 GB DDR4 RAM
- 1× WAN port (2.5 GbE RJ-45), 4× LAN port (2.5 GbE RJ-45), Bluetooth
- Compact design & dimensions 141.8 × 127.6 × 30 mm
- USB-C power supply (DC 5 V/ 3 A), power adapter included
- QoS with UniFi Wi-Fi Access Points, QoS by Application, Domain, and Country
- Identifying the application and device type
- Reporting Internet quality and outages
- IDS/IPS throughput up to 1.5 Gbps
- WireGuard, L2TP and OpenVPN server
- OpenVPN client and IPv6 ISP support
- License-free SD-WAN
- Routing-based WAN and VPN routing
- Management via UniFi Network App : version 8.1.113 or later
Next-generation security:
- Application-centric firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- Traffic segmentation based on VLAN/subnets
- Fully stateful firewall
BASIC SPECIFICATIONS
Ports: 1× 2.5GbE RJ-45 WAN, 4× 2.5GbE RJ-45 LAN, 1× USB-C (power)
Processor: ARM Cortex-A53 (4-core, 1.5 GHz)
Memory size: 2GB DDR4
PoE support: no
Dimensions: 141.8 x 127.6 x 30mm
Weight: 520g
Manual (assembly instructions):
https://dl.ui.com/qig/uxg-max/#index
