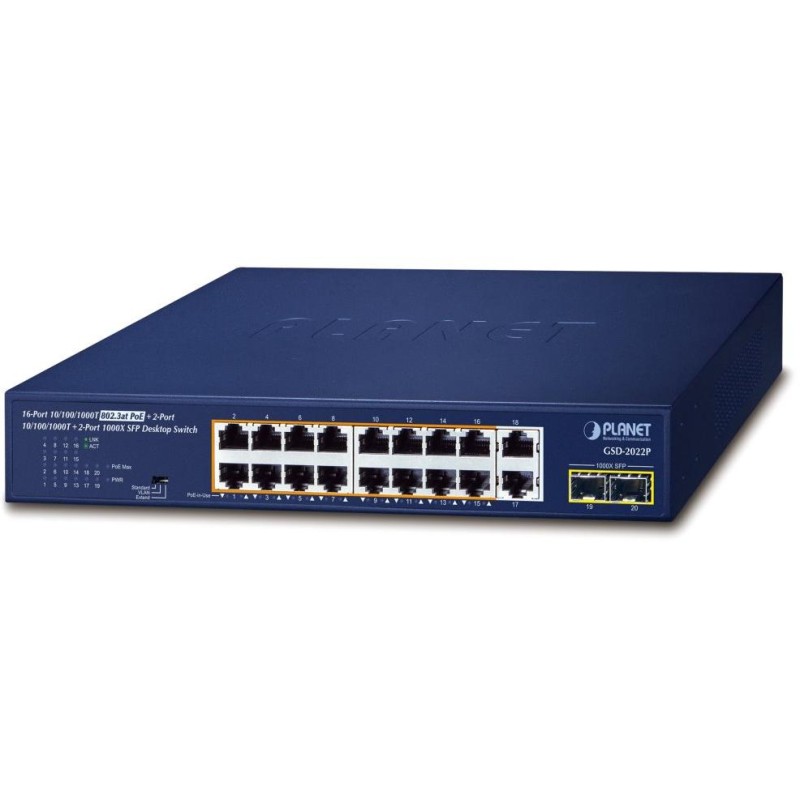

PLANET GSD-2022P
Gigabit PoE+ switch, 18 x 10/100/1000Base-T RJ-45 with 16 802.3af/at injectors, two 1000Base-X SFP slots, power output up to 185 W.
LED indication of PoE port usage, DIP switch for switching Standard/VLAN/Extend mode, power saving mechanisms according to IEEE 802.3az.
Gigabit switch with PoE+ (power over ethernet) ports for centralized power supply of devices over Ethernet such as IP cameras, Wi-Fi elements or VOIP phones and with the possibility of connecting to the infrastructure using two optical SFP ports.
The design of the device is suitable for installation in home or office spaces, as well as for applications in local distribution boards.
The output power of the PoE ports is regulated depending on the power consumption of the powered devices by EEE (Energy-Efficient Ethernet) mechanisms according to IEEE 802.3az.
The Switch has a manual mode switch:
- Standard - the switch powers devices at a distance of max. 100 m.
- VLAN - ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be prevented.
- Extend - the switch powers devices up to 250 m with reduced throughput of 10 Mbps per port.
BASIC SPECIFICATIONS
Physical properties:
Ports: 16 x RJ-45 10/100/1000T 802.3at PoE, 2 x RJ-45 10/100/1000T, 2 x SFP 1000Base-X
Memory: 8k MAC addresses
Throughput: 40 Gbps bus, operational 29.76 Mpps (64B)
Transmission support: JumboFrame 9 KB
Design: 1U rack
Power supply: internal power supply 100-240 V/ 50-60 Hz AC, total power consumption up to 201 W
Protection: surge protection up to 6 kV, ESD up to 8 kV
Operating temperature: 0 to +50 °C
Dimensions: 280 x 180 x 44 mm
Weight: 1.81 kg
PoE function:
Total power output: 185 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 16 x up to 30 W
Power supply type: End-span/Mid-span
Advanced features:
protection (of a circuit) against interference between ports
automatic detection of powered device
PD alive function support
