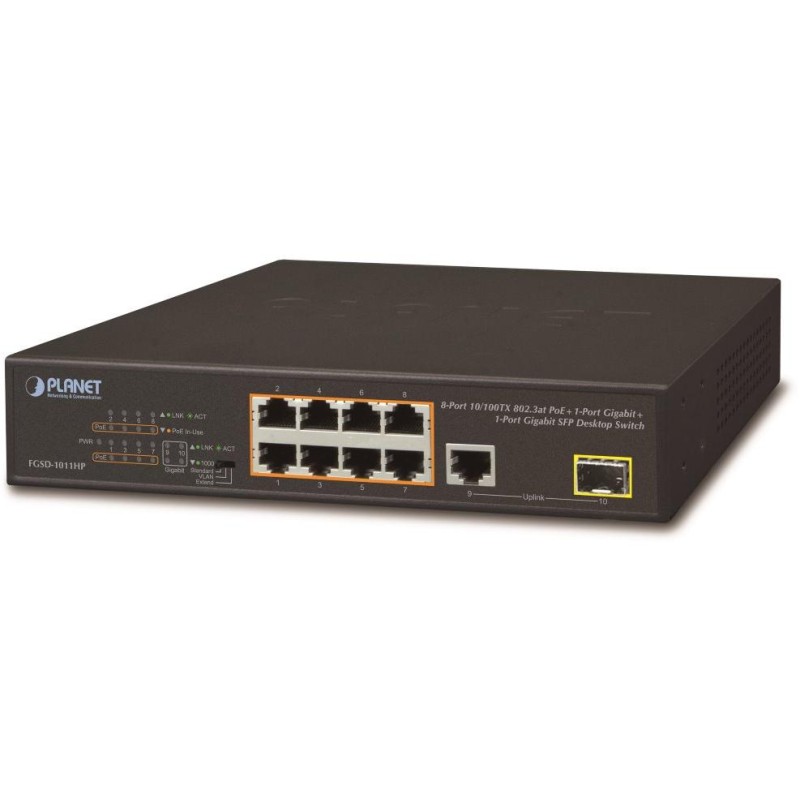

PLANET FGSD-1011HP
PoE switch with 120 W power, 8x 10/100Base-TX with the ability to power other IEEE 802.3at devices, two uplink 1000Base-X ports, 1x TP and 1x SFP.
DIP switches for settings, port VLAN, Extend mode for connections up to 250 m including PoE at 10Mb/s. ESD protection against overvoltage and electrostatics.
Internal AC 100~240 V power supply, fanless.
10-port PoE switch, thanks to 8 PoE ports, allows you to power other devices such as IP cameras, VoIP phones and desktop switches. When switched to Extend mode, this is possible at a speed of 10Mb/s up to a distance of 250m (connection length depends on the UTP cable used, connectors and design; practical experience of connections <200m).
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x RJ-45 10/100Base-TX, 1x RJ-45 10/100/1000BASE-T, 1x SFP 100/1000BASE-X, 1x RJ-45 console serial port
Memory: 4k MAC addresses
Throughput: 5.6 Gbps bus, 4.16 Mpps operational (64b)
Transmission support: JumboFrame 9KB
IP protocol version: IPv4, IPv6
Design: desktop
Power supply: 100-240 V/50-60 Hz AC, total power consumption up to 135 W
Protection: ESD against electrostatic electricity up to 8 kV
Operating temperature: 0 to 50 °C
Dimensions: 220 x 150 x 44 mm
Weight: 1220g
POE function:
Total power output: 120 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8x up to 30 W
Power supply type: End-span
Advanced features: Extended mode 10 Mbps with a range of up to 200 m
