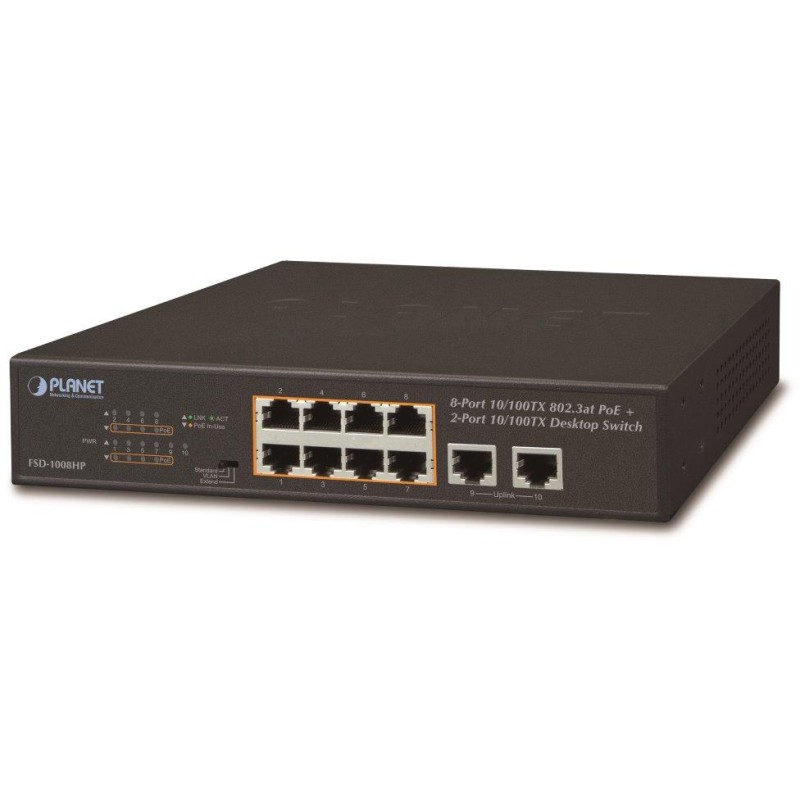

PLANET FSD-1008HP
10-port PoE switch 10/100Base-TX, including 8x Power over Ethernet injectors (power supplies) of the IEEE 802.3at standard, total power up to 120W.
Extend mode for connection at 10Mb/s up to a distance of 150-200m on UTP depending on the cable used, including PoE power supply. Port VLAN on PoE ports.
EEE Ethernet IEEE 802.3az. Automatic detection of 10/100Mbps and cable crossing. Fanless, internal AC 230V power supply.
Unmanaged switch suitable for CCTV camera IP systems. It has small dimensions, low power consumption and the ability to further power Power over Ethernet end devices according to the IEEE 802.3at standard. It allows you to connect and power Ethernet devices at a speed of 10Mb/s up to a distance of up to 250m on classic UTP cabling, individual ports with PoE power can be operationally separated by port VLANs.
250m is a theoretical maximum depending on the quality of the cabling and connectors, in normal conditions the real distance is 150m. According to our tests the real distance on a quality Cat 6 cable is 200 meters, on a Cat 5e cable 150 meters +- 10%.
BASIC SPECIFICATIONS
Physical properties:
Ports: 10 x RJ-45 10/100BASE-TX
Memory: 8k MAC addresses, frame length up to 1522B
Throughput: 2 Gbps bus, operational 1.48 Mpps (64b)
Design: rackmount 1U
Power supply: internal 100-240V/50-60Hz AC power supply, total power consumption up to 129 W
Protection: ESD up to 4kV contact, up to 6kV air
Operating temperature: 0 to 50°C
Dimensions: 220 x 150 x 43 mm
Weight: 1230g
POE function:
Total power output: 120 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8 x up to 30.8 W
Power supply type: End-span
Advanced features: automatic detection of powered device
Extended mode 10Mb/s with a range of up to 200m
