Planet GSW-1820VHP PoE switch, 16x1Gb + 2xSFP 1Gb, LCD, VLAN, extend mode 10Mb-250m, 802.3at 30/300W

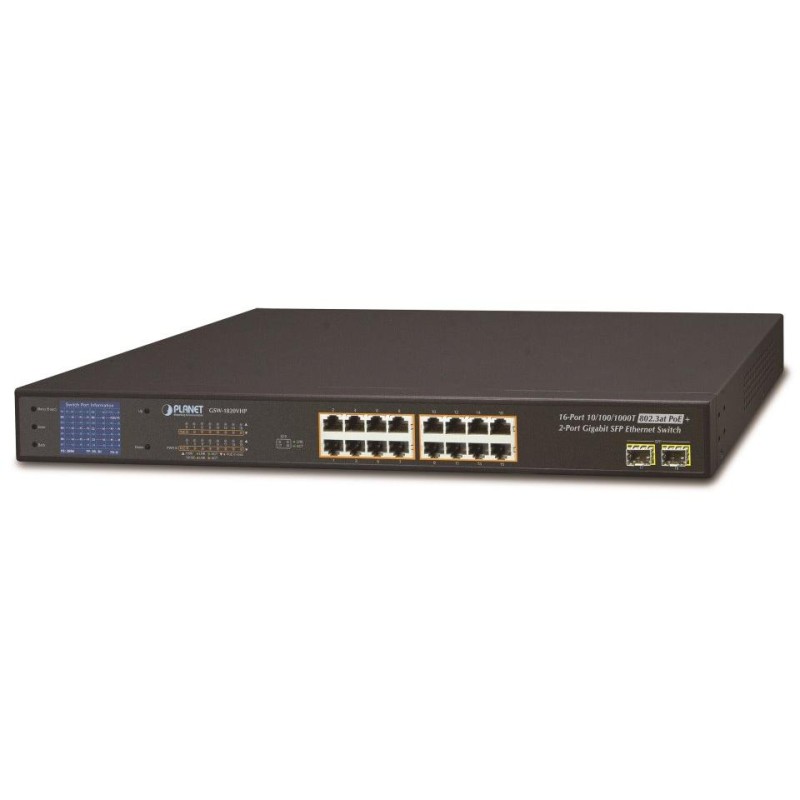

PLANET GSW-1820VHP

16 gigabit 1000Base-T ports with the ability to power other IEEE 802.3at devices, total power 300W; 2x SFP 1000Base-X ports for installing optical modules.

Extend mode for connection at 10Mb/s up to a distance of 150-200m on UTP depending on the cable used, including PoE power supply.

Color LCD display for power information, convenient control thanks to 5 buttons on the sides of the display, port VLAN. ESD protection, internal AC power supply.

This is a gigabit 16-port PoE switch with two optical SFP ports. It allows you to power other devices such as IP cameras, VoIP phones and WiFi access points. The device has a fully permeable 36Gbps fast internal backbone bus. Gigabit interfaces provide additional options for expandability, flexibility and network integration. The color LCD display on the front panel informs about the current PoE utilization.

It allows you to connect and power Ethernet devices at a speed of 10Mb/s up to a distance of 250m on classic UTP cabling. 250m is a theoretical maximum depending on the quality of the cabling and connectors, in normal conditions the real distance is 150m. According to our tests, the real distance on a quality Cat 6 cable is 200 meters, on a Cat 5e cable 150 meters +- 10%.

BASIC SPECIFICATIONS

Physical properties:

Ports: 16 x RJ-45 10/100/1000BASE-T + 2 x SFP 1000BASE-X

Memory: 8k MAC addresses

Throughput: 36 Gbps bus, operational 26.8 Mpps (64B)

Transmission support: JumboFrame 9KB

Design: rackmount

Power supply: internal 100-240V/50-60Hz AC power supply, total power consumption up to 20W

Protection: ESD up to 6kV,

Operating temperature: 0 - 50°C

Dimensions: 440 x 233 x 44 mm (1U height)

Weight: 3400g

POE function:
