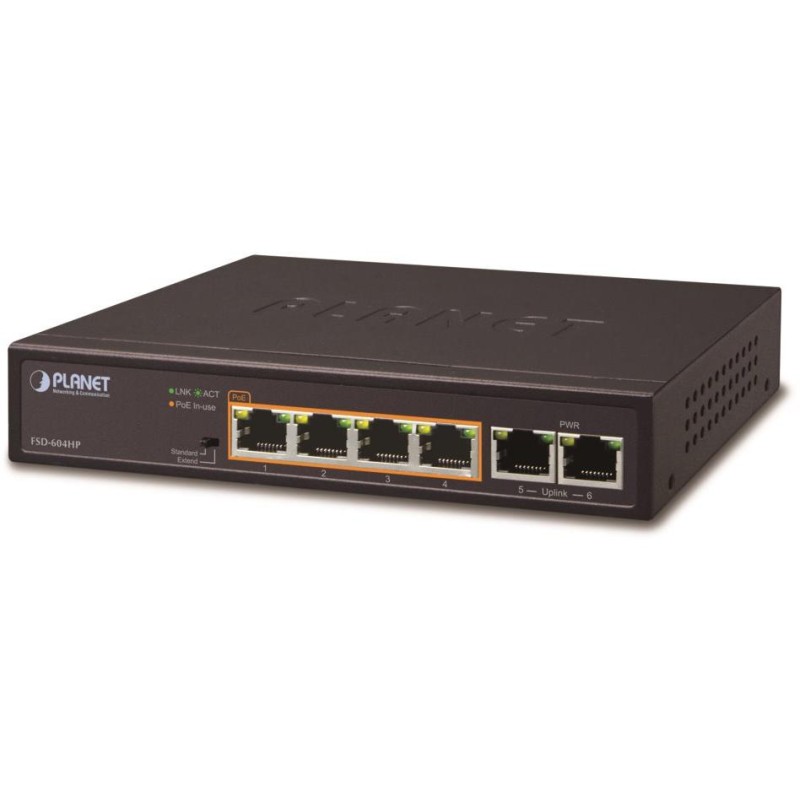

PLANET FSD-604HP
6-port PoE switch 10/100Base-TX, including 4x Power over Ethernet injectors (power supplies) of the IEEE 802.3at standard, total power up to 60 W.
Extend mode for connection at 10 Mb/s up to a distance of 150-200 m on UTP depending on the cable used, including PoE power supply. Port VLAN on PoE ports.
Automatic detection of 10/100 Mbps and cable crossing. ESD+EFT protection, fanless, internal AC 230 V power supply.
Unmanaged switch suitable for CCTV camera IP systems. It has small dimensions, low power consumption and the ability to further power Power over Ethernet end devices according to the IEEE 802.3at standard. It allows you to connect and power Ethernet devices at a speed of 10Mb/s up to a distance of up to 250m on classic UTP cabling, individual ports with PoE power can be operationally separated by port VLANs.
250m is a theoretical maximum depending on the quality of the cabling and connectors, under normal conditions the real distance is 150m. According to our tests the real distance on a quality Cat 6 cable is 200 meters, on a Cat 5e cable 150 meters +- 10%.
BASIC SPECIFICATIONS
Physical properties:
Ports: 6 x RJ-45 10/100BASE-TX
Memory: 2k MAC addresses, 1536 b buffer
Throughput: 1.2 Gbps bus, operational 0.89 Mpps (64b)
Design: desktop
Power supply: internal AC 100-240 V (50/60 Hz), total power consumption up to 3 W
Protection: ESD ±6KV DC, EFT ±4KV DC
Operating temperature: 0 to 50°C
Dimensions: 168 x 93 x 32 mm
Weight: 500g
POE function:
Total power output: 60 W, IEEE 802.3af, IEE 802.3at
Number of injectors: 4 x up to 30 W
Power supply type: End-span
Advanced features: Extended mode 10Mb/s with a range of up to 200m
