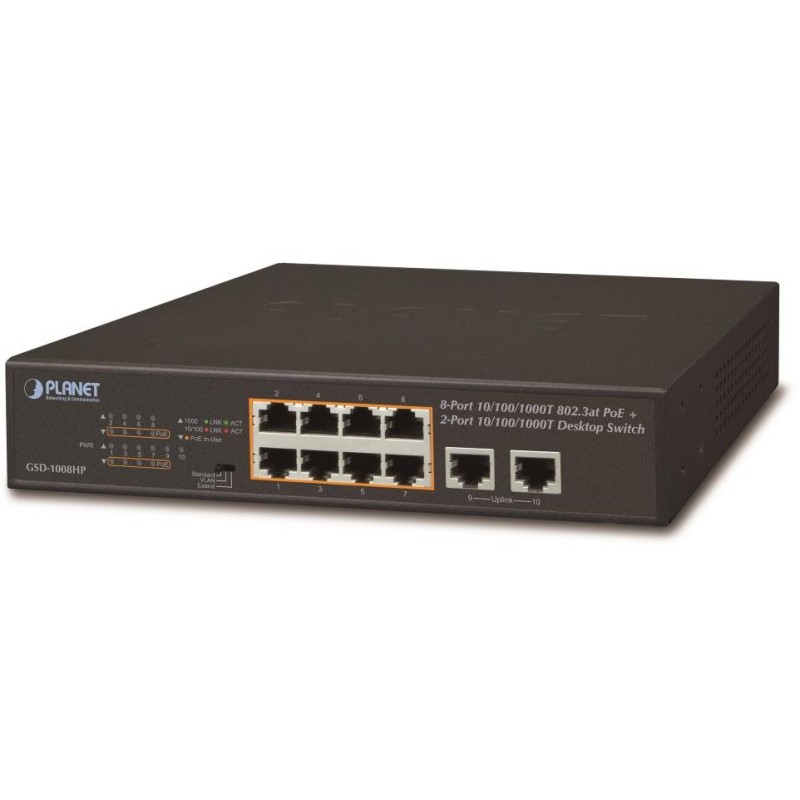

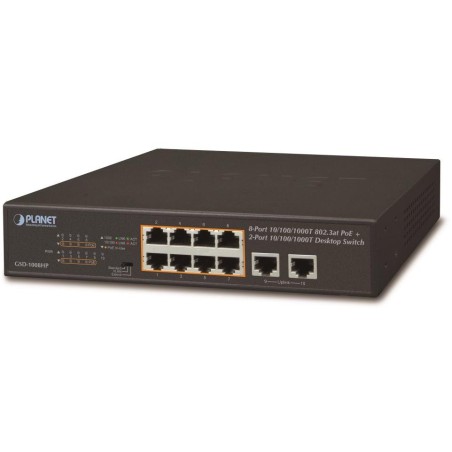

PLANET GSD-1008HP
10-port PoE switch 1000Base-T, including 8x Power over Ethernet injectors (power supplies) of the IEEE 802.3af/at standard, total power up to 120 W.
Extend mode for connection at 10 Mbps up to a distance of 150-200 m on UTP depending on the cable used (including PoE power supply), VLAN support on PoE ports.
EEE Ethernet IEEE 802.3az , automatic detection of 10/100/1000 Mb/s and cable crossing, AC 230 V power supply (internal power supply).
Unmanaged switch suitable for CCTV camera IP systems. It has small dimensions, low power consumption and the ability to further power Power over Ethernet end devices according to the IEEE 802.3at standard. It allows you to connect and power Ethernet devices at a speed of 10 Mb/s up to a distance of up to 250 m on classic UTP cabling, individual ports with PoE power can be operationally separated by port VLANs.
250 m is a theoretical maximum depending on the quality of the cabling and connectors, under normal conditions the real distance is 150 m. According to our tests, the real distance on a quality Cat6 cable is 200 meters, on a Cat5e cable 150 meters ±10%.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x RJ-45 10/100/1000Base-T 802.3af/at PoE, 2x RJ-45 10/100/1000Base-T
Memory: 8k MAC addresses
Throughput: 20 Gbps bus, operational 13.4 Mpps (64 B)
Transmission support: JumboFrame 9 KB
Design: desktop
Power supply: internal AC 100-240 V, 50-60 Hz, total power consumption up to 124 W
Protection: ESD contact up to 6 KV DC, ESD from air up to 8 KV DC
Operating temperature: 0 to +50 °C
Dimensions: 220 x 150 x 43 mm
Weight: 1205g
PoE function:
Total power output: 120 W, IEEE 802.3at, IEEE 802.3af
Number of injectors: 8x up to 32 W
Power supply type: End-span
Advanced features: automatic detection of powered device
Extended mode 10 Mbps with a range of up to 200 m
